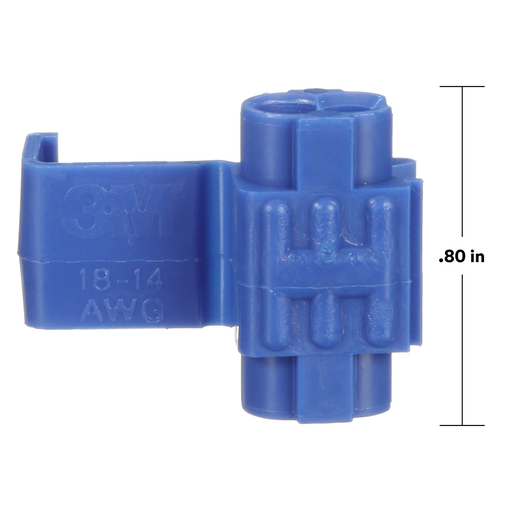

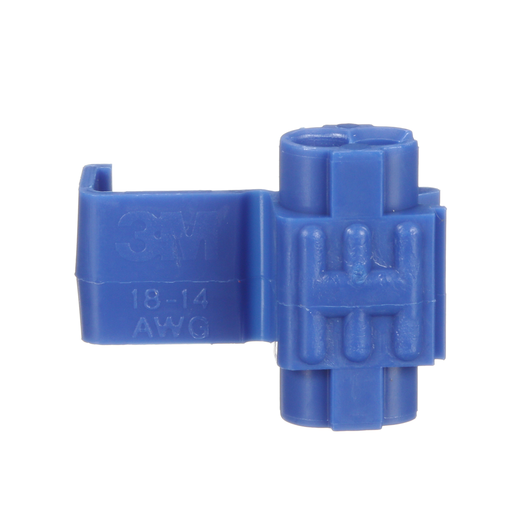

Product image for 3M 7100166938 3M™ Scotchlok™ IDC C
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

3M 7100166938 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7100166938 | Echo Electric Part # 168102
$35.85/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
200 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page

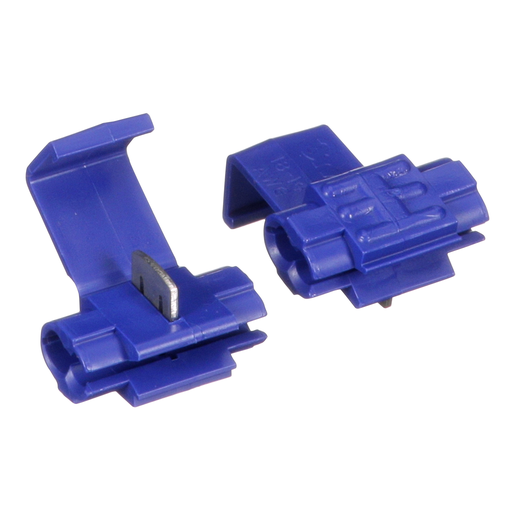

3M™ Scotchlok™ 560B IDC Double Run or Tap Connector electrically connects a tap wire to a run (through) wire while insulating the connection. This connector insulation is manufactured from polypropylene and is ideal for tap or parallel splicing. It is 600V-rated for building wire and 1000V-rated for signs, fixtures and luminaires. It withstands temperatures of 194 degrees F (90 degrees C).

Technical Information

Conductor Size
18-16 AWG/18-14 AWG
Connection Type
Double Run Or Tap
Flame Retardant
Yes
Max Operating Temperature
105.0 degrees C
Temperature Rating
194 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
18-16 AWG / 14 AWG Stranded

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007200901
Color
Blue
GTiN
10054007200908
Product Type
Connector
Product UPC
05400720090

Certifications and Compliance

Country of Origin
USA
Features
  • CONDUCTIVE U-CONTACT: Tin-plated brass helps conductivity and resistance to corrosion

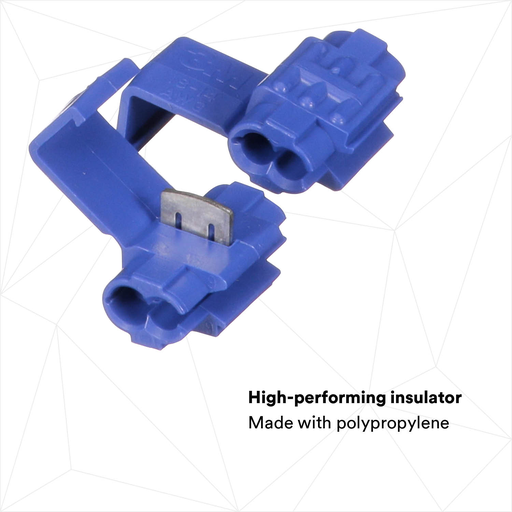

  • HIGH-PERFORMING INSULATOR: Made with polypropylene

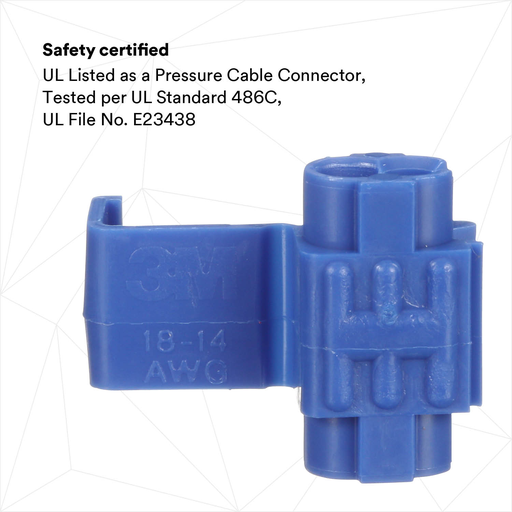

  • SAFETY CERTIFIED: UL Listed as a Pressure Cable Connector, Tested per UL Standard 486C, UL File No. E23438
  • COMPATIBILITY NOTE: UL Listed for AWG only
  • UL listed for AWG only
