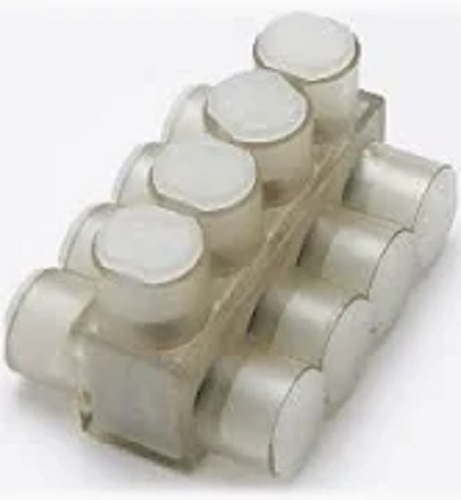

Product image for Burndy BIBD2504 Aluminum Multiple Tap Connector, Clear Insulated, 4 Port, 2 Sided Entry, 10 AWG-250 kcmil, Al/Cu Rated
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy BIBD2504 Aluminum Multiple Tap Connector, Clear Insulated, 4 Port, 2 Sided Entry, 10 AWG-250 kcmil, Al/Cu Rated

Manufacturer: Burndy | Catalog # BIBD2504 | Echo Electric Part # 168518
$83.10/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
33 available

For Delivery

Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Product Spec Sheet
Aluminum Multiple Tap Connector, Clear Insulated, 4 Port, 2 Sided Entry, 10 AWG-250 kcmil, Al/Cu Rated.

Technical Information

Applications
For Indoor use, Copper or Stranded Aluminum
Conductor Size
10 AWG-250 kcmil
Connection Type
Screw
Insulation Type
Plastisol
Material
Aluminum
Number of Ports
4
Plated?
No
Plating Type
Unplated
Size
2.14 IN Height X 2.64 IN Width X 3.88 IN Length
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
BIBD, Multi-Port, Two Side, 1-Level
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Unitap™

General Product Info

12-Digit UPC
781810133415
GTiN
00781810133415
Product UPC
78181013341

Dimensions

Height
2.13 Inch
Length
3.91 Inch
Overall Length
99 mm
Width
67 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Clear Plastisol covered AL6061-T6 aluminum body saves times and lowers installation costs and eliminates taping
  • Clear plastisol allows visual confirmation that conductor is properly inserted
  • Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
  • Range-taking capability reduces number of connectors necessary to carry in inventory
