Product image for Burndy YHR900 Compression Line Tap for Copper, AL or ACSR and Compact Conductors,groove A(Run) ACSR:5565 (18/1) - 795 (26/7)
Image thumbnail 0
Image thumbnail 1
Email

Burndy YHR900 Compression Line Tap for Copper, AL or ACSR and Compact Conductors,groove A(Run) ACSR:5565 (18/1) - 795 (26/7)

Manufacturer: Burndy | Catalog # YHR900 | Echo Electric Part # 168590
$59.31/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
4 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Compression Line Tap for Copper, AL or ACSR and Compact Conductors,groove A(Run) ACSR:556.5 (18/1) - 795 (26/7).

Technical Information

Applications
For Copper, Aluminum Or ACSR And Compact Conductors
Conductor Size
600-900 kcmil
Material
Aluminum
Plated?
No
Plating Type
Unplated

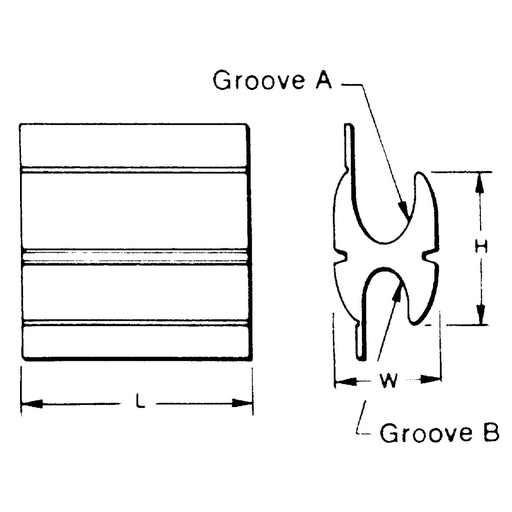

Size
2.97 IN Height X 1.74 IN Width X 4.62 IN Length
Tap Size
600 - 900 KCMIL Stranded; 556.5 (18/1) - 795 (26/7) KCMIL ACSR, 795 - 954 KCMIL Compressed ACSR
Type
YHR

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810139851
GTiN
00781810139851
Product UPC
78181013985

Dimensions

Height
2.97 Inch
Length
4.62 Inch
Overall Length
117 mm
Width
1.74 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • Wide range, universal and reversible Figure H-Shaped aluminum connector
  • Conductors are separated by the shape of the connector
  • Bendable tabs secure both run and tap conductors freeing the installer to work with the installation tool
  • Massive aluminum design miniizes corrosion due to galvanic corrosion
  • Prefilled with PENETROX Joint Compound and individually packaged
