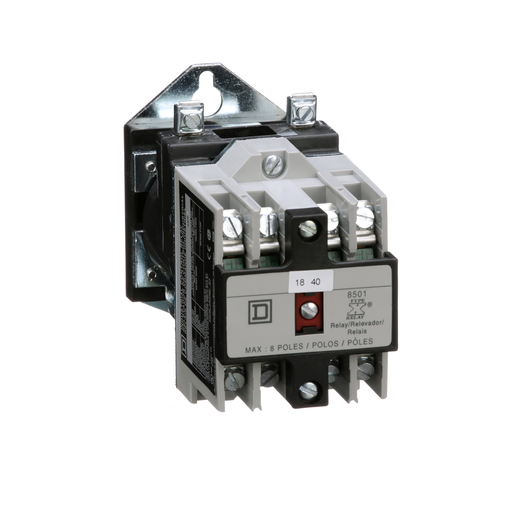

Product image for Square D 8501XDO20V62 115/125 VDC 10/5 Amp 2-Pole 2NO Panel Mount DC Operated Control Relay
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Square D 8501XDO20V62 115/125 VDC 10/5 Amp 2-Pole 2NO Panel Mount DC Operated Control Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XDO20V62 | Echo Electric Part # 169096
$376.74/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 2 normally open contacts, 115/125 VDC coil

Technical Information

Amperage
5-10 Amp
Contact Configuration
2 NO 2 standard contact cartridges
Contact Rating
10 A AC-5 A DC
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Panel
Number of Poles
2 Pole
Operating Temperature
-40-160 Adegrees F
Size
5.17 in
TC Connection
Screw clamp terminals
Type
Relay;Control

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901548713
GTiN
00785901548713
Product UPC
78590154871

Dimensions

Depth
5.17 Inch
Height
3.56 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
Compatible Products
  • 8501XA1
  • 8501XB20
  • 8501XB40
  • 8501XC1
  • 8501XC2
  • 8501XM8
  • 8501XTD1
  • 8501XTD2
  • 8501XTE1
  • 8501XTE2
