Hubbell HBL3430-G 30A 3Ph 250V AC Non-NEMA Twist-Lock Black Single Flush Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL3430G | Echo Electric Part # 169703
$172.59/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Base Material
Plastic,RTP
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Material
Thermoplastic
Mounting Type
Screw/Flush
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Standard
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585333250
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585333250
Product UPC
78358533325
Weight
0.35 lb

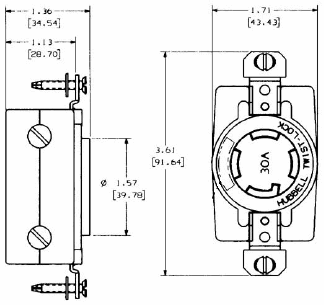

Dimensions

Height
1.36 Inch
Length
3.61 Inch
Width
1.71 in

Certifications and Compliance

Country of Origin
USA
Features
  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard
