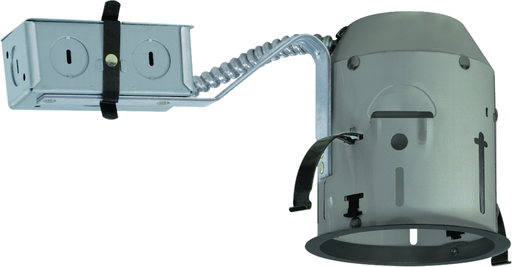

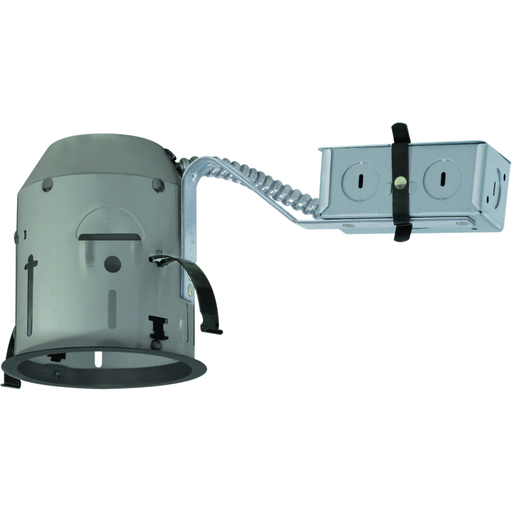

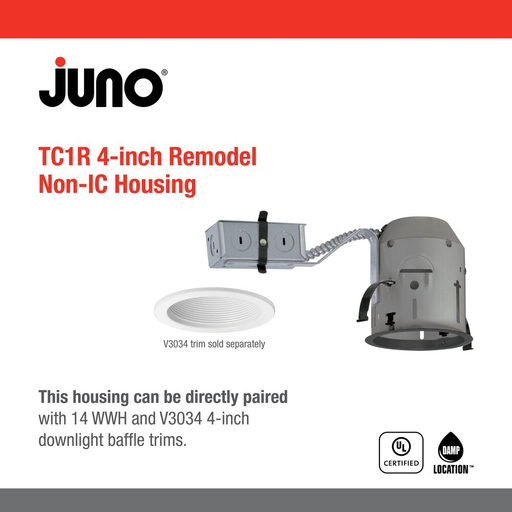

4" Incandescent Remodel Non-IC Housing

Manufacturer: Juno Lighting | Catalog # TC1R | Echo Electric Part # 169898
$23.20/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
2 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
The non-IC remodel housing is ideal for applications where the backside of the ceiling is not accessible. The housing is designed to be installed in non-insulated areas or where insulation is spaced 3 inches away from the housing.

Technical Information

Aperture Size
4 in
Applications
Residential
Lamp Type
Incandescent
Lamp Wattage
100 W
Mounting Type
Recessed
Number of Lamps
1
Power Source
Hardwired
Type
Remodel
Voltage
120 Volt

Manufacturer Information

Brand
Acuity Brands Lighting
Sub Brand
Juno

General Product Info

12-Digit UPC
661209017987
Construction
Remodel
Environment
Indoor
Environmental Conditions
Indoor
Fixture Type
Incandescent Line Voltage
GTiN
00661209017987
Housing Material
Steel
Product UPC
66120901798
Shape
Round
Weight
2 lb

Dimensions

Height
5-1/4 Inch
Length
11-1/2 Inch
Width
4.75 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • If installed where insulation is present, the insulation must be pulled back 3 from all sides of the TC housing.
  • TC1R, recommended lamps: R14/R16/R20/PAR16/PAR20
  • Housings include medium base porcelain socket with nickel-plated copper screw shell
  • UL Listed, CSA certified to US and Canadian standards, Listed for damp locations
  • Standard 120 volts used in most residential applications
  • Does not include light source
  • Air-Loc housing stops infiltration and exfiltration of air, reducing heating and cooling costs
  • Emergency battery back-up not included in this version
  • 1-year limited warranty
  • Dimensions: Height 5 1/4-in. x Width 6-3/4-in. x Full Width 13-1/2-in. x Length 9-1/8-in. x Full Length 12-1/8-in.
Applications
  • Residential
Standards
  • CSA
  • UL
