PAN FHS9N-12-10N HD Flex™ FAP Casse

Manufacturer: Panduit Corp | Catalog # FHS9N-12-10N | Echo Electric Part # 169924
$517.08/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual

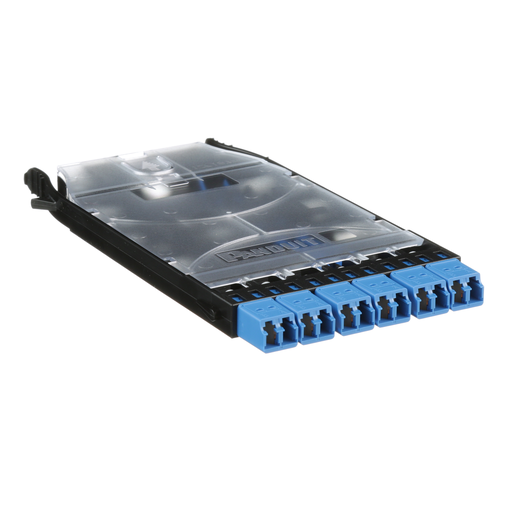

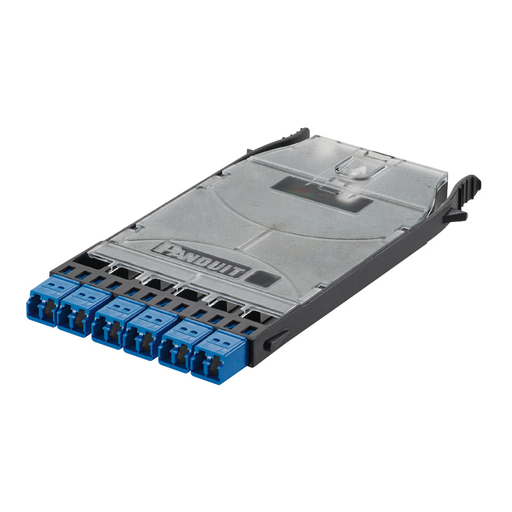

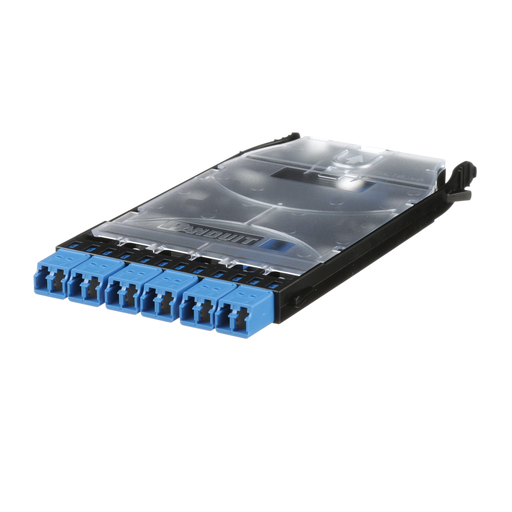

This HD Flex™ LC Splice/FAP cassette features 6-ports and has duplex LC singlemode adapters. It is blue with zirconia sleeves.

Technical Information

Applications
Reach and Breakout Construction to Application Requirements, to Minimize Waste, Optimize Cable Management, Speed Deployment and Improve Flexibility and Manageability for Lower Installation Costs
Connection Type
LC Duplex
Connector Type
LC Duplex
Fiber Type
OS2 9/125 m Singlemode
Material
Zirconia Ceramic
Number of Fibers
12
Number of Ports
6
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Temperature Rating
0 - 70 degrees C
Type
LC Splice/FAP Cassette

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
HD Flex™

General Product Info

12-Digit UPC
074983038572
Color
Blue
GTiN
00074983038572
Product UPC
07498303857

Dimensions

Depth
7.3 Inch
Height
0.46 Inch
Width
7.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Meets or exceeds: ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS Compliant
