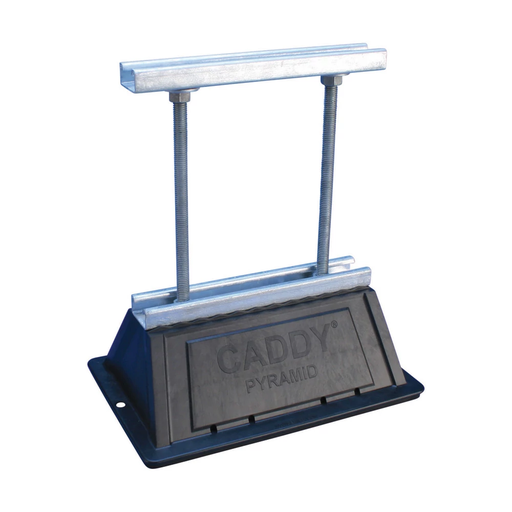

Caddy PSA10CH13 Pyramid Adjustable Conduit Support, 1000lb Static Load, 10" L x 13" H

Manufacturer: Erico, Inc | Catalog # PSA10CH13 | Echo Electric Part # 169949
$13,539.29/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Allows elevation changes of up to 18" (457 mm) off the roof surface with 10" or 16" (254 mm or 406 mm) of usable strut length. Ready to use, out-off-the box solution with hot-dip galvanized strut profile and hardware. 254 mm long, height adjustable from 152-330 mm.

Technical Information

Applications
Datacom and Low Voltage; Electrical Fixing and Fastening; HVAC, Plumbing and Refrigeration; Rooftop
Material
Steel
Type
CADDY PYRAMID ST Adjustable Strut Support

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856843030
Finish
Hot Dipped Galvanized
GTiN
00782856843030
Product UPC
78285684303
Weight
1.65 kg

Dimensions

Length
12-1/2 Inch
Thickness
13 in
Width
8 in
Features
  • Height adjustability provides effective navigation of pipe, conduit, duct and cable tray around obstructions
  • Foam bottom offers low abrasion interface for better roof membrane protection
  • Compatible with roof surfaces including single ply, bituminous, metal and spray foam
  • Provides superior load distribution, even with varying rooftop surfaces
  • Ready to use out of the box, saving installation time and labor
  • Multiple sizes and load ratings offer the ability to tailor the solution to the application
  • Hot-dip galvanized and UV stabilized for long lasting performance
