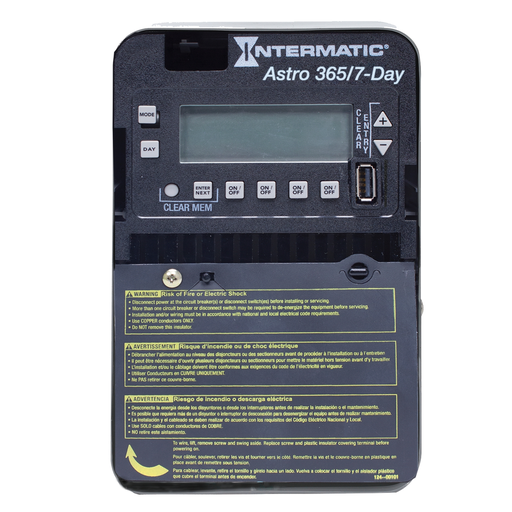

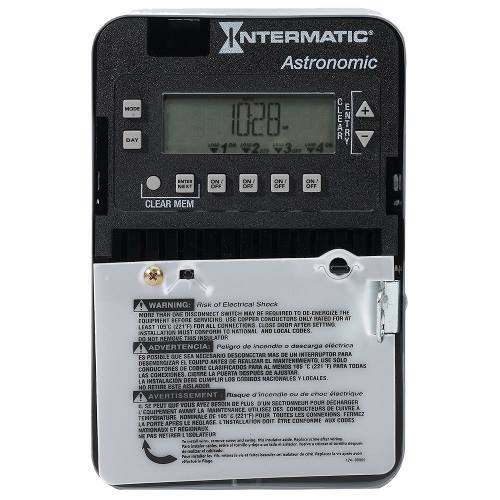

Product image for Intermatic ET2845C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp DPST Astronomic Electronic Control
Image thumbnail 0
Image thumbnail 1
Email

Intermatic ET2845C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp DPST Astronomic Electronic Control

Manufacturer: Intermatic, Inc | Catalog # ET2845C | Echo Electric Part # 169956
$534.88/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Technical Information

Action
SPST
Amperage
30 Amp
Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Conductor Size
14-8 AWG
Connection Type
Wire Lead
Contact Configuration
SPST - 1 NO
Contact Rating
30 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC, 10 AMP @ 120/277 VAC (Ballast)
Enclosure
Type 1 Steel
Enclosure Type
Indoor Metal Enclosure
Frequency
50/60 Hz
Input Voltage
120-277 V
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
4
Number of Poles
1 Pole
Operating Cycles
ON-OFF-ON
Operating Temperature
-40 to 155 degrees F, -40 to 68 degrees C
Power Consumption
7 W
Standard
Meet Title 20/24 Compliance,UL Rating
Switch Type
4xSPST, 2xDPST Or Pulse
TC Connection
Wire Lead
Temperature Rating
40.0 degrees C
Type
Astronomic, Electronic
Voltage
277 Volt
Wire Size
18-10 AWG

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275147737
Color
Gray
GTiN
00078275147737
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827514773
Used With
Lighting

Dimensions

Depth
3.437 Inch
Height
7-7/8 Inch
Warranty Length
2 yr
Width
5.125 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • 100-hour supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy
