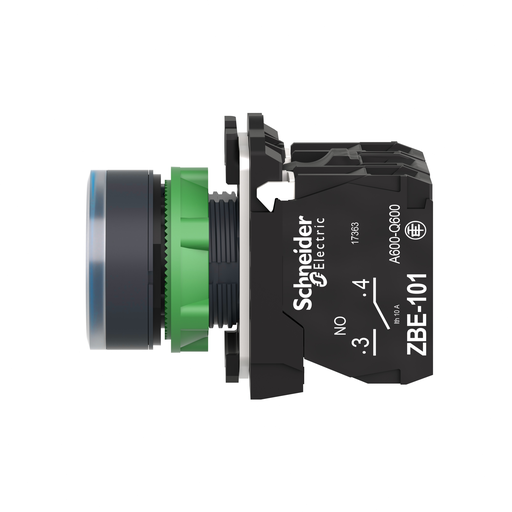

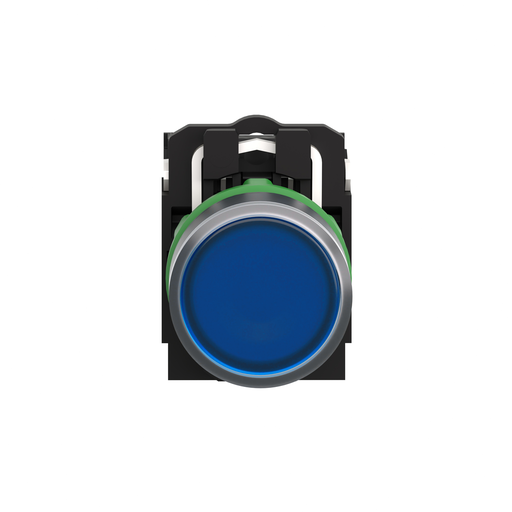

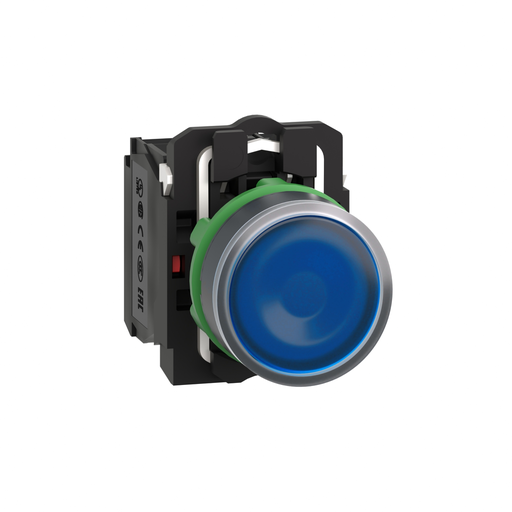

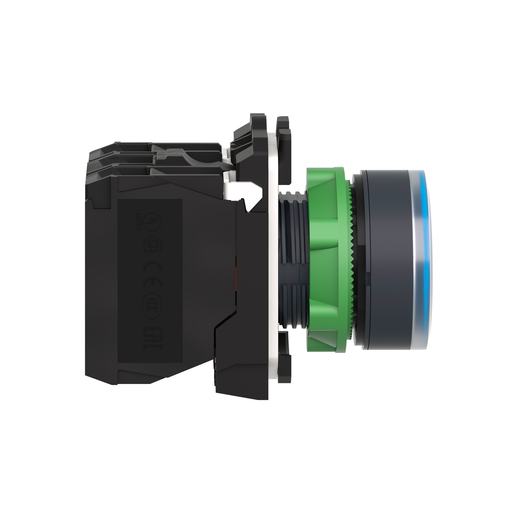

Product image for Square D XB5AW36G5 22 mm 120 VAC 14 mA 1NO 1NC Blue Round Momentary Flush Illuminated Push Button
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Square D XB5AW36G5 22 mm 120 VAC 14 mA 1NO 1NC Blue Round Momentary Flush Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB5AW36G5 | Echo Electric Part # 170099
$178.69/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XB5, illuminated modular blue push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical Information

Action
Slow-break
Actuator
BLUE FLUSH, UNMARKED,SPRING RETURN
Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Bezel Material
Plastic

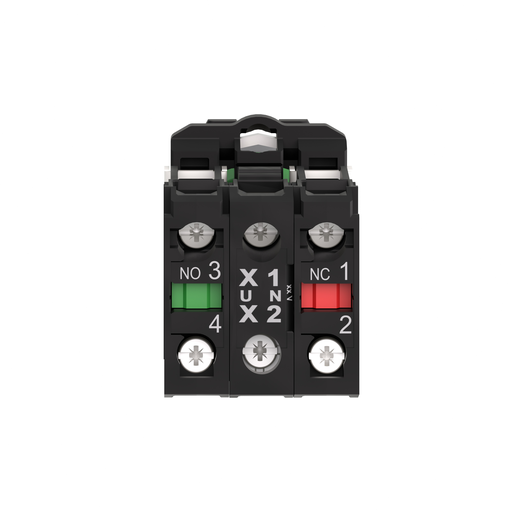

Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Current
14 mA
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
INTEGRAL LED,PROTECTED LED
Light Source
Universal LED
Net Weight
0.056 kg
Operating Force
3.5 N
Operating Temperature
-40-70 Adegrees C
Size
2.24 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Illuminated push-button
Voltage
110...120 Volt AC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY XB5

General Product Info

12-Digit UPC
389110136961
Color
Blue
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110136968
Product UPC
78590138478
Weight
0.056 kg

Dimensions

Depth
57 mm
Height
42 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBY2101
  • ZB5AZ905
Spare Part Products
  • ZB5AW0G15
  • ZB5AW363
