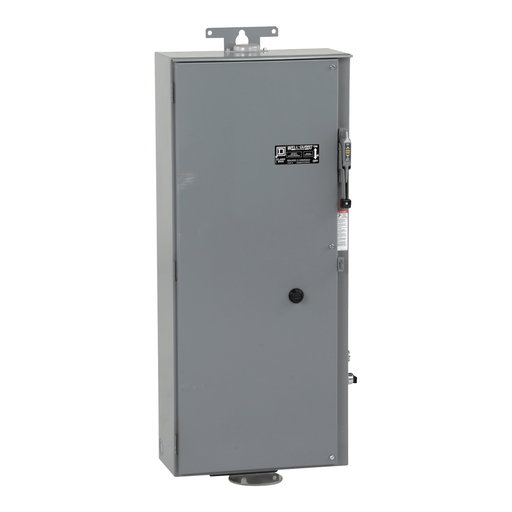

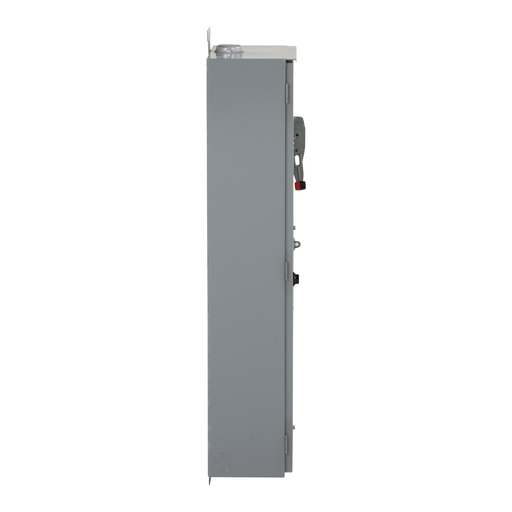

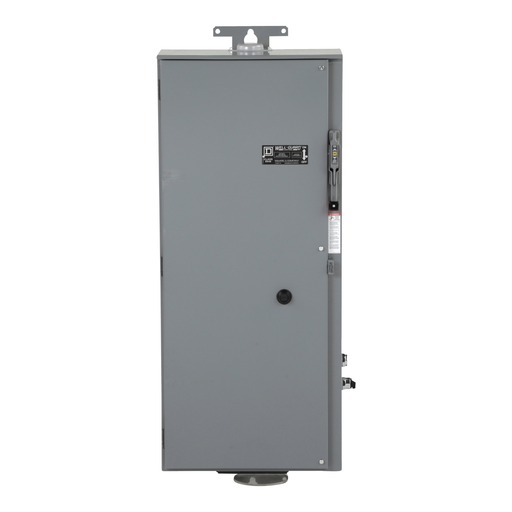

Square D 8940SSE4050V02S 110/120 VAC 90 Amp 50 Hp 3-Pole NEMA 3R Full Voltage Fusible Switch Pump Panel

Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxilliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 100A fusible disconnect switch. This NEMA Size 3 starter has a 50 HP at 480 VAC three phase rating and has a maximum rating of 90 Amperes. This 3 pole starter is for three phase applications. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This Well-Guard pump panel has a Motor Logic overload relay to sense over current conditions. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 49.00 inches tall, 19.15 inches wide and 10.37 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
