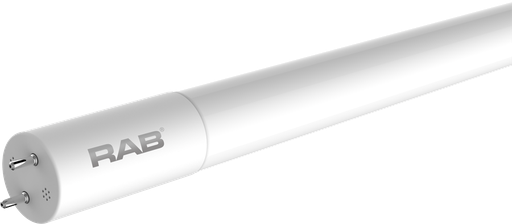

Product image for RAB T8-17-48G-840-DE-BYP T8 LED 4ft
Image thumbnail 0
Image thumbnail 1
Email

RAB T8-17-48G-840-DE-BYP T8 LED 4ft

Manufacturer: Rab Electric Mfg | Catalog # T8-17-48G-840-DE-BYP | Echo Electric Part # 170457
$13.80/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Linear Tubes 2200 Lumens T8 17W 4 Feet Glass 80CRI 4000K Double Ended Wiring Method Ballast Bypass

Technical Information

Applications
Damp Locations,Totally Enclosed Fixtures
Average Rated Life
50,000 hr
Base
G13
Base Type
G13
Beam Angle
210 degrees
Beam Spread
240 degrees
Bulb Shape
T8
Color Accuracy
82
Color Rendering Index
82
Color Temperature
4000 K
Correlated Color Temp
4,000 K
Dimmable?
No
Efficacy
129 LPW
Input Voltage
120 V
Input Wattage
17
Lumens
2,200 Lumen
Material
Glass
Operating Frequency
60 Hz
Operating Temperature
-20 degrees C
Power Factor
0.9
Type
LAMPS
Voltage
120-277 Volt
Wattage
17

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813750842
Color
4000 K
Finish
White
GTiN
00019813750842
Product UPC
01981375084
Weight
0.5 lb

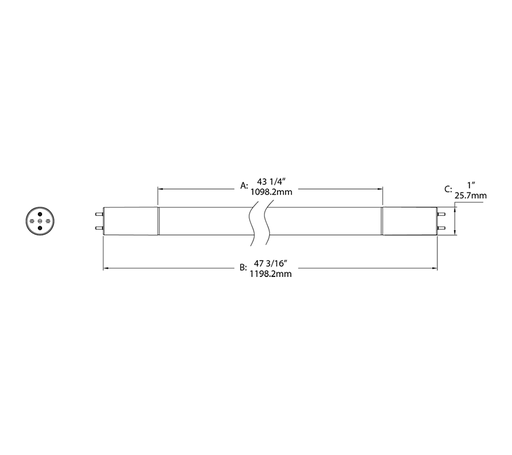

Dimensions

Length
4 Foot
Warranty Length
5 yr
Features
  • Replacement for conventional fluorescent T8 and T12 linear tubes
  • Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Double ended wiring method
  • Works with shunted sockets.
  • Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
  • 50,000 hour Lifespan.
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • Internal thermal fuse for added safety
  • Emergency back up available. Catalog Numbers: DRI-5-EMGR-T8, DRI-10-EMGR-TYPE B
  • Phase cut dimming
  • Equivalency
  • Warranty
