PHNX 2839127 VAL-MS 230

Manufacturer: Phoenix Blocks | Catalog # 2839127 | Echo Electric Part # 170677
$226.15/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

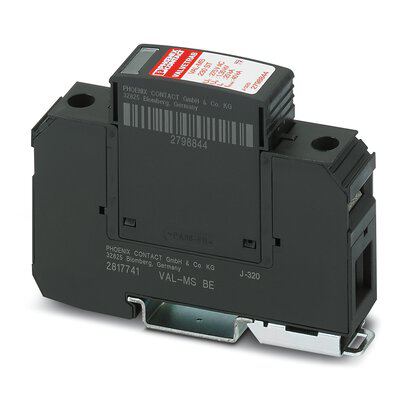

Surge voltage arrester consisting of base element and ground connector with high-capacity varistor, for mounting on NS 35/7.5, nominal voltage: 230 V AC, 1-channel.

Technical Information

Amperage
80 Amp
Enclosure Type
IP20
Material
Polybutylene Terephthalate/Polyamide 6.6
Mounting Type
35 mm DIN Rail
Nominal Discharge Current
20 kA
Power Rating
<=120 mVA
Strip Length
16 mm
TC Connection
Fork Type Cable Lug
Temperature Rating
-40 to 80 degrees C
Terminal Type
M5 Screw
Type
Type 2
Voltage
240/415 VAC

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
179181826010
Environmental Conditions
5 - 95% Humidity
Product UPC
17918182601

Dimensions

Depth
65.7 mm
Height
89.8 mm
Width
17.6 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Single-channel, DIN-rail mountable protective devices
  • Mechanical coding of all slots
  • Optical, mechanical status indication for the individual arresters
  • Disconnect device on each individual plug
  • Base element with/without floating remote indication contact
  • Consists of base element and plug
Approvals
  • CCA
  • EAC
  • cULus Recognized
  • GL
  • IECEE CB Scheme
  • KEMA-KEUR
  • CSA
  • VE
  • UL Recognized
  • cUL Recognized
