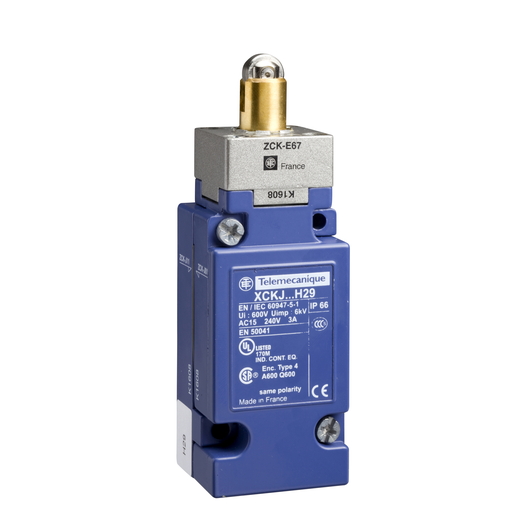

TES XCKJ1167H7 Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1C/O, snap, 1/2NPT

Manufacturer: TESENSOR | Catalog # XCKJ1167H7 | Echo Electric Part # 170692
$395.39/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1C/O, snap, 1/2NPT

Technical Information

Action
Snap action;By 30? cam
Actuator
SPRING RETURN ROLLER PLUNGER METAL REINFORCED
Amperage
10 Amp
Applications
INDUSTRIAL
Body Material
Zamak
Body Type
Plug-in body
Cable Entry
1 entry tapped for 1/2" NPT cable gland
Contact Configuration
1 C/O
Enclosure
NEMA 1/2/4/12 IP 66
Head Type
Plunger head
Material
Metal
Net Weight
0.455 kg
Number of Poles
1 Pole
Number of Steps
1
Operating Cycles
5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.42 in
Standard
CENELEC EN 50041,CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.75...2 X 1.5 MMA
Type
Limit switch
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKJ

General Product Info

12-Digit UPC
785901921950
GTiN
03389118120761
Product UPC
78590192195
Weight
1.00 lb

Dimensions

Depth
36 mm
Height
84-84 mm
Warranty Length
18 mth
Width
43 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
Country of Origin
France
