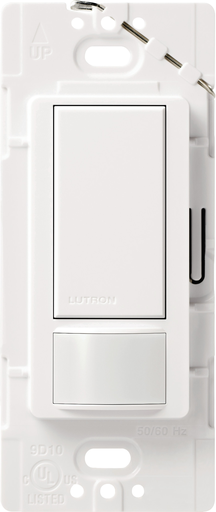

Product image for Lutron MS-OPS5MH-WH Maestro 5 Amp Occupancy Sensor Switch
Email

Lutron MS-OPS5MH-WH Maestro 5 Amp Occupancy Sensor Switch

Manufacturer: Lutron | Catalog # MS-OPS5MH-WH | Echo Electric Part # 170957
$43.75/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
5A lighting, 3A fan, XCT PIR sensor, single pole/3-way/multi-location, 120-277V

Technical Information

Amperage
5 Amp
Applications
Lighting Control
Body Material
Plastic
Enclosure
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Operating Temperature
0 to 40 degrees C
Power Supply
120 V
Sensing Range
900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Standard
CUL,NOM,UL
Type
Multi-Location, 3-Way, Clamshell Packaging, Single Circuit
Voltage
120-277 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557983884
Color
White
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
GTiN
00027557983884
Product UPC
02755798388
Features
  • Automatically turns the lights on when you enter the room and off when you leave
  • Features XCT sensing technology which detects fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently
  • Optional: senses daylight so lights do not turn on when there is enough natural light in the room
  • Programmable time-out of lights - 1, 5, 15 or 30 minutes
  • Works with all bulb types; up to 600W incandescent, halogen and electronic low-voltage, 450W magnetic low-voltage, 360W CFL/LED, 5 ballasts, 3A fans
  • Can be used in single-pole or multi-location applications; great for larger rooms like garages, bathrooms and private offices
  • Installs in as little as 15 minutes; no neutral required
  • Includes (1) maestro sensor switch; coordinating wallplate sold separately
  • Combines a Maestro switch with a passive infrared occupancy sensor
  • Detects the heat from occupants moving within an area to determine whether the space is occupied
  • Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
  • Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
  • Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
  • Ground wire required.
Standards and Certifications
  • UL
  • CUL
  • NOM
  • cUL
