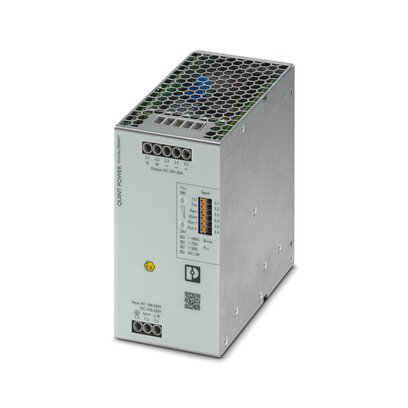

PHNX 2904617 QUINT4-PS/1AC/24DC/20/+

Manufacturer: Phoenix Blocks | Catalog # 2904617 | Echo Electric Part # 171130
$791.95/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Primary-switched QUINT POWER supply for DIN rail mounting, with selectable output characteristic curve and SFB Technology (selective fuse breaking), protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC / 20 A

Technical Information

Output Voltage
24 V
Strip Length
8 mm
Voltage
10 Volt

Manufacturer Information

Brand
Phoenix Contact

General Product Info

12-Digit UPC
556263550856
Product UPC
55626355085

Dimensions

Depth
125 mm
Height
130 mm
Width
70 mm

Certifications and Compliance

Country of Origin
Thailand
Features
  • Most powerful output side: easy system expansion, reliable heavy load startup and miniature circuit breaker tripping
  • Most robust input side: high noise immunity, thanks to integrated gas-filled surge arrester (up to 6 kV) and ? 20 ms mains failure buffer time
  • Most comprehensive signaling: preventive function monitoring reports critical operating states before errors occur
  • Available pre-configured: from a batch quantity of just 1
Approvals
  • cULus Listed
  • cULus Recognized
  • ATEX
  • EAC Ex
  • EAC
  • LR
  • IECEx
  • IECEE CB Scheme
  • DNV GL
  • CSA
  • CSAus
  • UL Listed
  • cUL Listed
  • UL Recognized
  • cUL Recognized
