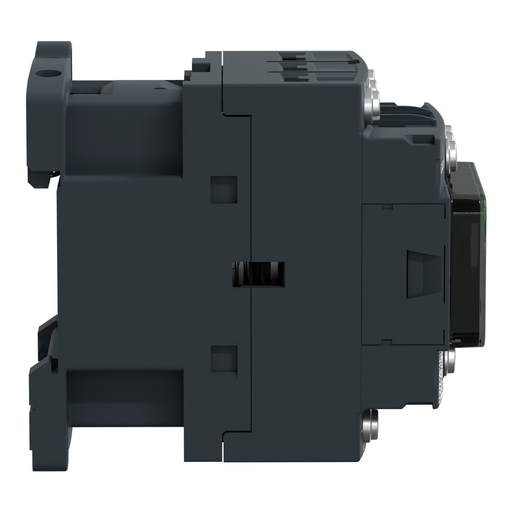

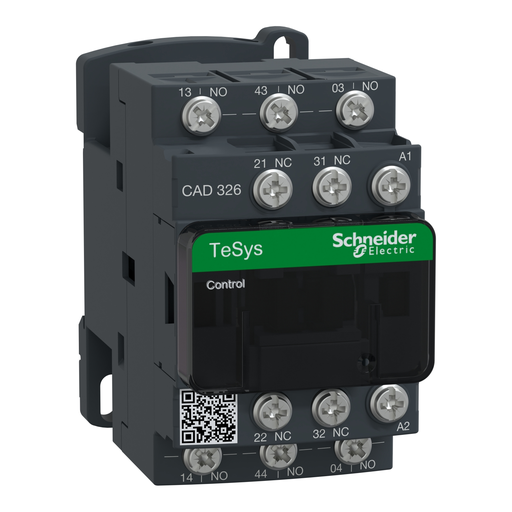

Product image for Square D CAD326U7 240 VAC 10 Amp 5-Pole 5NO IEC Control Relay
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D CAD326U7 240 VAC 10 Amp 5-Pole 5NO IEC Control Relay

Manufacturer: Square-D / Schneider | Catalog # CAD326U7 | Echo Electric Part # 171160
$218.60/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Technical Information

Amperage
10 Amp AT <= 60 ?C
Applications
Control circuit
Contact Configuration
3 NO + 2 NC
Contact Rating
<= 690 V AC 25...400 HZ
Enclosure
IP2X FRONT FACE CONFORMING TO VDE 0106
Net Weight
0.58 kg
Operating Cycles
180 cyc/mn
Operating Temperature
-40-70 Adegrees C
Size
3.31 in
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,GB/T 14048.5,JIS C8201-5-1,UL 60947-5-1
Storage Temperature
-60-80 degrees C
TC Connection
LUGS-RING TERMINALS 8 MM)
Type
Control relay
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
CAD;TeSys CAD

General Product Info

12-Digit UPC
785901448631
GTiN
03389118003729
Product UPC
78590144863
Weight
0.58 kg

Dimensions

Depth
84 mm
Height
77 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
