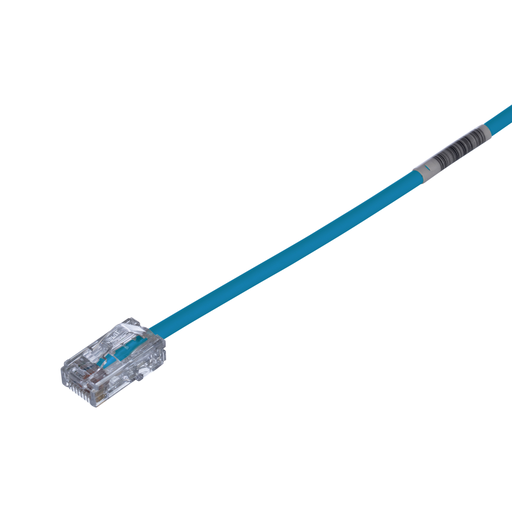

Product image for PAN UTP28CH3BU Cat 5e 28 AWG UTP Co
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PAN UTP28CH3BU Cat 5e 28 AWG UTP Co

Manufacturer: Panduit Corp | Catalog # UTP28CH3BU | Echo Electric Part # 171195
$18.18/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Closes 5:00pm CT
1 available

For Delivery

Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual
The TX5e™ Cat 5e UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug™ modular plugs on each end. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 3 feet in length and blue.

Technical Information

Applications
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Voice/data systems (4) Voice over Internet Protocol (VoIP)
Boot Color
No Boot
Cable Type
28 AWG U/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 5e
Plug Type
Modular Plug
Temperature Rating
167 degrees F
Type
Category 5e, Small Diameter
Wire Size
28 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983417773
Color
Blue
GTiN
00074983417773
Jacket Material
LSZH Material
Product UPC
07498341777
UNSPSC
43223303

Dimensions

Cable Length
3 ft
Length
3 Inch
Outer Diameter
0.15 in
Outside Diameter
3.8 mm
Overall Length
3 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
