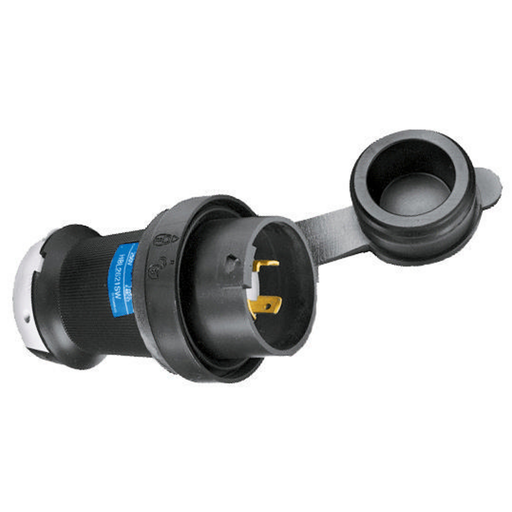

Product image for Hubbell HBL2321SW 20 Amp 250 Volt 2-Pole 3-Wire NEMA L6-20P Black and White Watertight Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL2321SW 20 Amp 250 Volt 2-Pole 3-Wire NEMA L6-20P Black and White Watertight Locking Plug

Manufacturer: Hubbell Wiring Device | Catalog # HBL2321SW | Echo Electric Part # 171362
$123.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20P, Screw Terminal, Black PBT housing, White PBT clamps.

Technical Information

Amperage
20 Amp
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
16-8 AWG
Cord Size
0.36 - 0.93 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Material
PBT
Mounting Type
Surface, Cord
NEMA
L6-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
2.77 in x 2.77 in x 4.40 in
Standard
4X,CSA,Type 12,Type 4,UL
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard, Shrouded
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585231105
Color
Black,White
Environmental Conditions
Watertight, UL 94 Requirements, V0 Rated Flammability
GTiN
00783585231105
Product UPC
78358523110
Weight
0.60 lb

Dimensions

Height
4.4 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL Type 4X Environmental seal protects connection while in use.
  • Impact resistant shroud protects blades against bending and breaking.
  • Reduces exposure to arcing when connecting or disconnecting under load.
  • Superior cord grip design protects terminations from excess strain.
  • Standard Product
