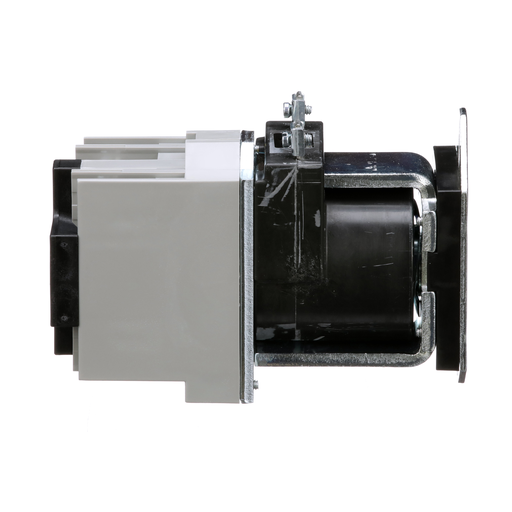

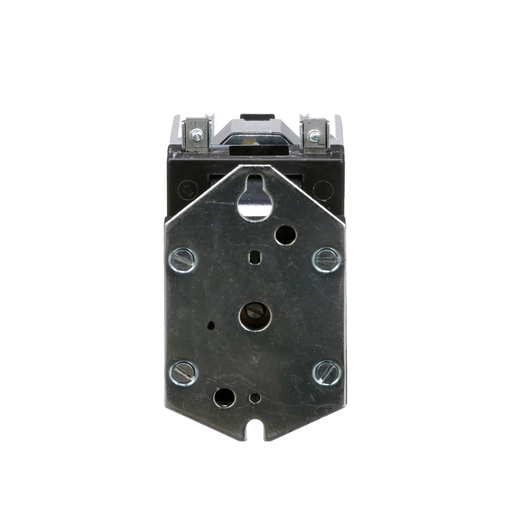

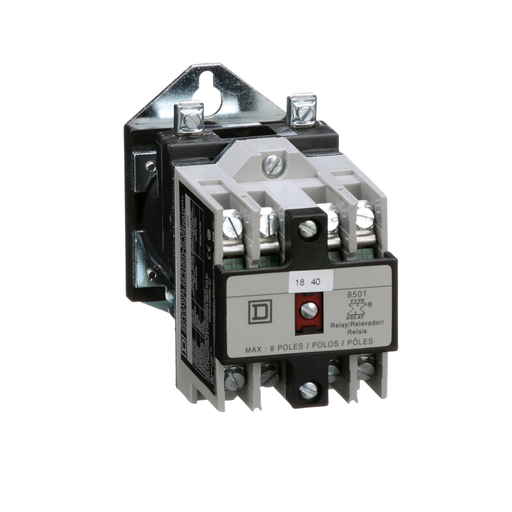

Product image for SQD 8501XDO00V62 NEMA Control Relay
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

SQD 8501XDO00V62 NEMA Control Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XDO00V62 | Echo Electric Part # 171602
$462.36/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
NEMA Control Relay, machine tool, 0 NO, 115/125 VDC coil

Technical Information

Amperage
5-10 Amp
Contact Configuration
WITHOUT
Contact Rating
10 A AC-5 A DC
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Panel
Operating Temperature
-40-160 Adegrees F
Size
2.23 IN,3.56 IN,5.17 IN
TC Connection
AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS
Type
CONTROL,RELAY

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901931904
GTiN
00785901931904
Product UPC
78590193190

Dimensions

Depth
5.17 Inch
Height
3.56 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
Compatible Products
  • 8501XC1
  • 8501XC2
  • 8501XB20
  • 8501XB40
  • 8501XA1
  • 8501XTD1
  • 8501XTD2
  • 8501XTE1
  • 8501XTE2
  • 8501XM8
