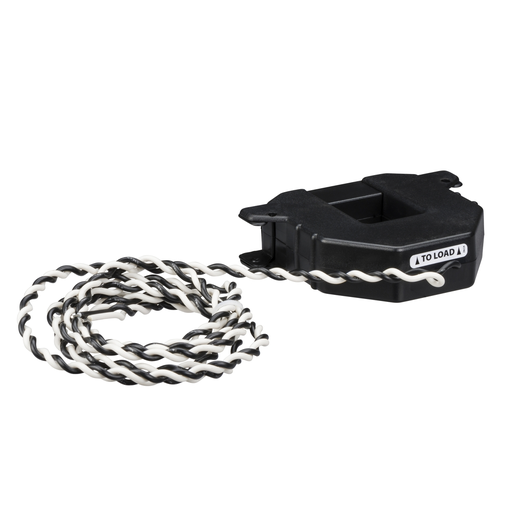

Product image for Square D 3090SCCT063 2.45 x 2.89 Inch 5 VA 600 VAC 50/60 Hz 600:5 18 AWG Split Core Current Transformer
Email

Square D 3090SCCT063 2.45 x 2.89 Inch 5 VA 600 VAC 50/60 Hz 600:5 18 AWG Split Core Current Transformer

Manufacturer: Square-D / Schneider | Catalog # 3090SCCT063 | Echo Electric Part # 171614
$275.56/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This current transformer, has a line rated current of 0600 A and a secondary current rating of 5 A. Size type 3 with core opening of 2.45 inches by 2.89 inches. Compatible with PowerLogic family of meters, and Acti 9 energy meters. Burden and accuracy class as follows class 1 maximum power 5 VA.

Technical Information

Accuracy
1 FULL SCALE
Applications
MEASUREMENT ACCESSORY
Range
PowerLogic
Size
INTERNAL 62 MM-EXTERNAL 150 MM,INTERNAL 73 MM-EXTERNAL 141 MM
Standard
IEC 61010-1,UL 1015,UL 61010-1
Storage Temperature
-40-70 degrees C
Type
CURRENT TRANSFORMER,SPLIT CORE

Manufacturer Information

Brand
Schneider Electric
Sub Brand
POWERLOGIC,POWERLOGIC POWERLOGIC PM5000 POWER METER-POWERLOGIC POWERLOGIC PM3000 POWER METER-POWERLOGIC POWERLOGIC PM8000 POWER METER-POWERLOGIC POWERLOGIC ION7400 POWER METER-POWERLOGIC CM4000T CIRCUIT MONITOR-ACTI 9 ACTI 9 IEM3000 ENERGY METER

General Product Info

12-Digit UPC
785901000471
GTiN
00785901000471
Product UPC
78590100047

Dimensions

Depth
29 mm
Height
141 mm
Warranty Length
18 mth
Width
150 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • METSEPM3200
  • METSEPM3250
