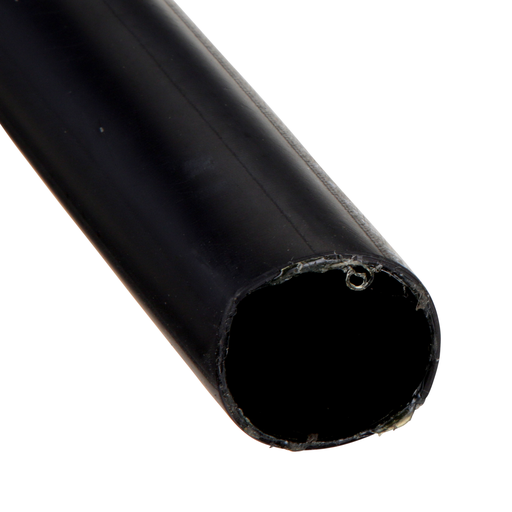

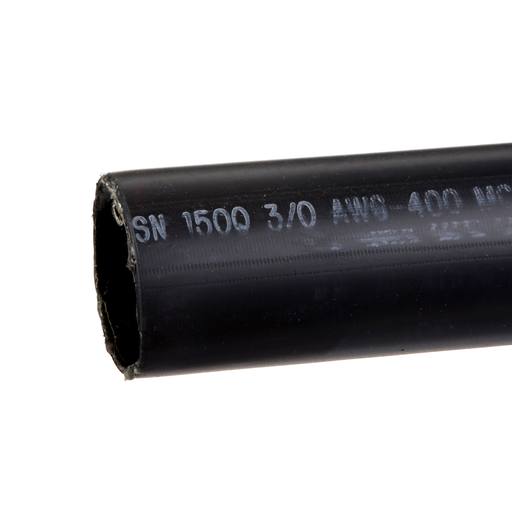

Product image for 3M ITCSN-1500-9"-Black-10 Pcs Heavy Wall Shrink Tubing
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

3M ITCSN-1500-9"-Black-10 Pcs Heavy Wall Shrink Tubing

Manufacturer: 3M | Catalog # 7000057990 | Echo Electric Part # 171965
$2,902.29/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
1 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
78 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Technical Information

Dielectric Strength
500 V/mil
Material
Polyolefin
Max Operating Temperature
100.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3 to 1
Splice Type
Heat Shrink
Tensile Strength
2400 lb/in
Type
Heavy Wall
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007088974
Color
Black
GTiN
00054007088974
Product Type
Splice
Product UPC
05400708897

Dimensions

Length
9 Inch
Overall Length
9.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67230 °F (55110 °C)

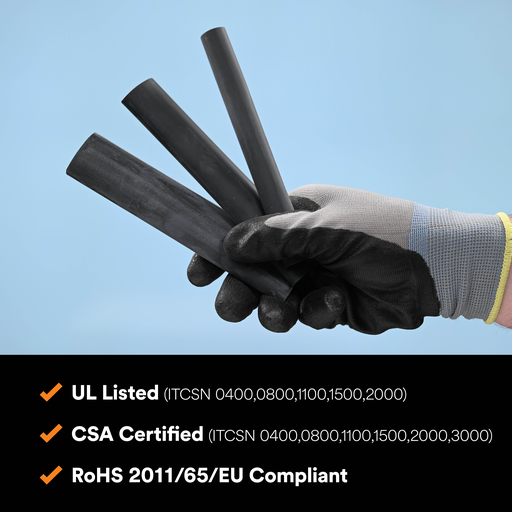

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
