Thomas & Betts 18RA-8 Vinyl-Insulated Ring Terminal - #22-16, #8bolt

Manufacturer: Thomas & Betts Co | Catalog # 18RA-8 | Echo Electric Part # 172544
$161.14/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
300 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page

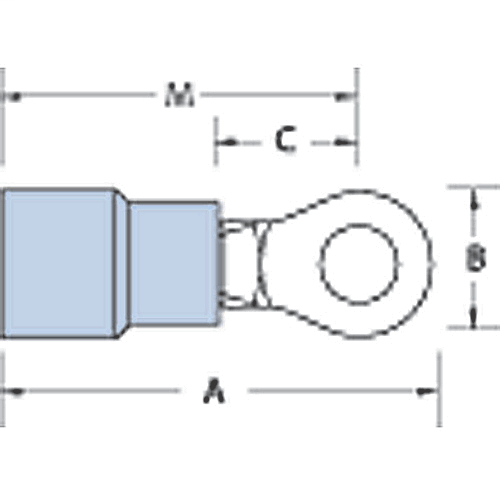

Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800882
Color
Red
Finish
Tin Plated
GTiN
05414363138594
Product UPC
78621080088
Used With
Round Conductors

Dimensions

Height
8.8 Inch
Thickness
.03 in
Width
9.4 in
Certifications
  • UL
  • CSA
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
