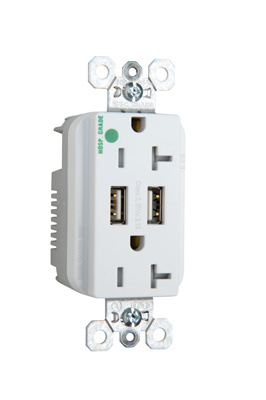

Pass & Seymour TR-8300HUSBW Hospital-Grade USB Charger with Tamper Resistant White 20 Amp Duplex Receptacles

Manufacturer: Pass & Seymour / Legrand | Catalog # TR-8300HUSBW | Echo Electric Part # 172608
$81.42/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
Designed for the healthcare market and capable of withstanding heavy use due to its UL Hospital Grade certification. Features include an improved overall 3.1A USB charging capability, auto-ground clips, zinc-plated ground terminal screw, as well as triple-wipe brass contacts for lasting retention. The screw-pressure-plate back wiring makes installation fast and easy. Also available in black, green, gray, ivory, light almond, nickel, red and white.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Body Material
Nylon
Conductor Size
14-10 AWG
Face Material
Polycarbonate
Grade
Hospital
Material
Nylon
NEMA
5-20R
Number of Ports
2
Temperature Rating
-40 degrees C to 60 degrees C
Type
Tamper-Resistant
Voltage
125 VAC
Wire Type
Stranded and Solid Copper

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007031560
Color
White
Finish
Matte
GTiN
00785007031560
Product UPC
78500703156

Dimensions

Depth
1.392 Inch
Height
2.677 Inch
Width
1.693 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Vietnam
Features
  • Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices
  • AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
  • Multiple color options available.
  • Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
  • Stainless steel auto-ground clips assure positive ground.
Certifications
  • cULus Listed
  • Federal Spec Listed
  • UL Listed
