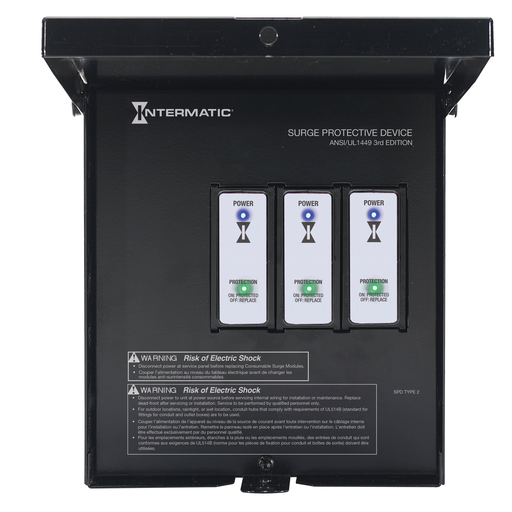

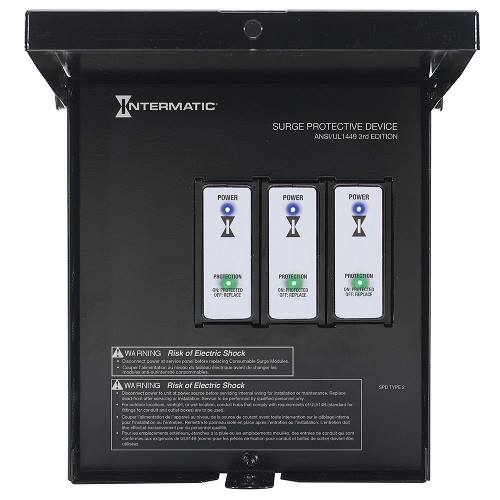

Product image for Intermatic IG2280-OM 2 SPD SNGL PH 20IN 3R/OD METAL BASE
Image thumbnail 0
Image thumbnail 1
Email

Intermatic IG2280-OM 2 SPD SNGL PH 20IN 3R/OD METAL BASE

Manufacturer: Intermatic, Inc | Catalog # IG2280-OM | Echo Electric Part # 172621
$322.25/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Intermatic's Smart Guard Whole House Surge Protective Device provides coverage of your customer’s big investment equipment, from appliances and computers, to HVAC equipment and TVs. This innovative SPD uses Consumable Modules with LED lights for quick and easy indication when protection has been compromised. A blue light indicates the SPD unit is ON and a green light indicates surge protection is active. Trusted, state-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. UL Listed to ANSI/UL 1449 3rd edition

Technical Information

Applications
Whole Home Protection
Enclosure Rating
3R
Frequency
50/60 Hz
Input Voltage
120/240 V
Material
Steel
Max Operating Temperature
185 degrees F
Min Operating Temperature
-31 degrees F
Mounting Type
Flush Mount
Number of Phases
1 Phase
Standard
ANSI/UL1449 3rd Edition,CULus Listed
Type
Type I or II
Voltage
120/240 VAC
Wire Length
457.2 mm

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275146129
Color
Black
Finish
Powder Coated
GTiN
00078275146129
Product UPC
07827514612

Dimensions

Warranty Length
10 yr

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Six Modes of protection
  • TPMOV® surge protection technology
  • Includes three IMODULES with LED power and protection status lights
  • IMODULES replace quickly and easily, eliminating the need to install a new SPD unit
  • Tamper-proof IMODULE doors, will only open when IMODULE is being inserted
  • Type 3R Rainproof Enclosure for indoor/outdoor applications in metal
  • 10-year product warranty
  • $25,000 connected equipment warranty for 10 years on appliances and electronics
  • UL Listed to ANSI/UL 1449 5th edition
  • NA
