Thomas & Betts 14RB-6 18 to 14 AWG #6 Stud Blue Electrotinned Copper Vinyl Insulated Ring Terminal

Manufacturer: Thomas & Betts Co | Catalog # 14RB-6 | Echo Electric Part # 172625
$167.85/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page

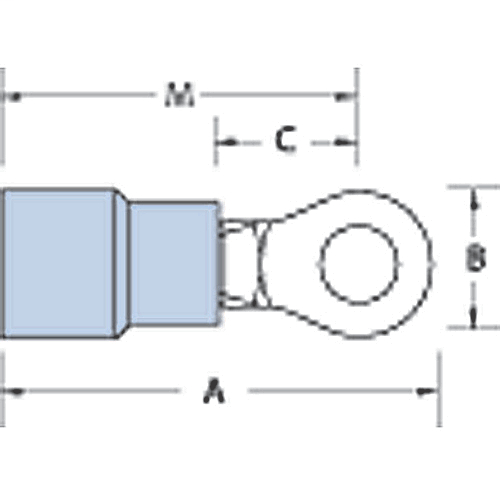

Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800615
Color
Blue
Finish
Tin Plated
GTiN
05414363138013
Product UPC
78621080061
Used With
Round Conductors

Dimensions

Height
8.9 Inch
Thickness
.03 in
Width
9-1/2 in
Certifications
  • CSA
  • UL
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
