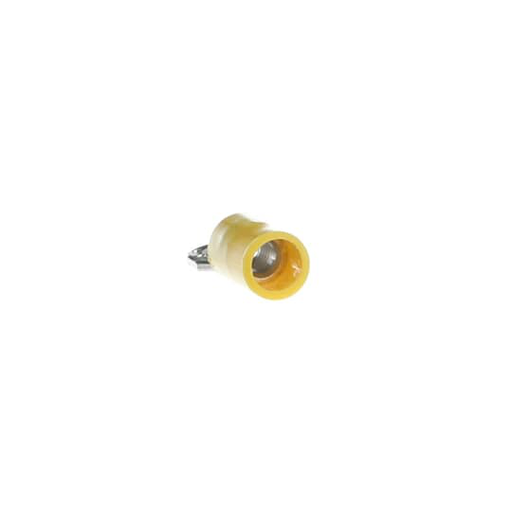

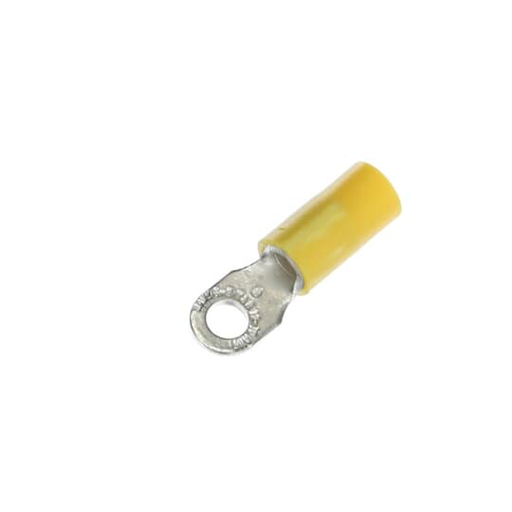

Product image for Thomas & Betts 10RC-8 Vinyl-Insulated Ring Terminal - #12-10, #8bolt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts 10RC-8 Vinyl-Insulated Ring Terminal - #12-10, #8bolt

Manufacturer: Thomas & Betts Co | Catalog # 10RC-8 | Echo Electric Part # 172637
$214.59/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
100 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page
Vinyl-Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800387
Color
Yellow
Finish
Tin Plated
GTiN
05414363136323
Product UPC
78621080038
Used With
Round Conductors

Dimensions

Thickness
.04 in
Certifications
  • UL
  • CSA
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
