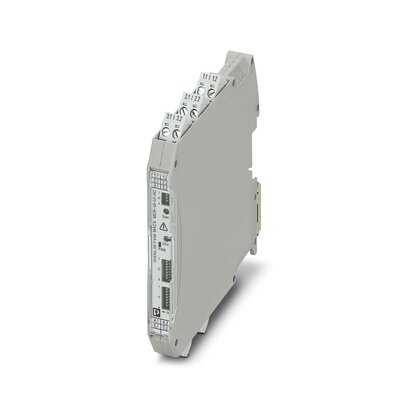

Product image for PHNX 2811446 MACX MCR-UI-UI-NC
Email

PHNX 2811446 MACX MCR-UI-UI-NC

Manufacturer: Phoenix Blocks | Catalog # 2811446 | Echo Electric Part # 172665
$804.30/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Configurable 3-way isolating amplifier with safe electrical isolation, 24 V, power bridging. DIP switches on the front, over 1600 signal conversions can be set. Standard configuration (IN 0 ... 10 V/OUT 0 ... 20 mA), screw connection, SIL.

Technical Information

Operating Temperature
70 degrees C
Strip Length
7 mm

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
463562889276
Product UPC
46356288927

Dimensions

Depth
113.7 mm
Height
112.5 mm
Width
12.5 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Power supply possible via DIN rail connector
  • Over 1600 signal conversions can be set via DIP switches on the front
  • Installation in zone 2 permitted
  • Up to SIL 2 according to EN 61508
  • 3-way electrical isolation
  • Analog signal conditioner for isolating, filtering, amplifying, and converting standard analog signals
  • Configurable input and output signals, including bipolar current and voltage signals
  • 10 kHz limit frequency for time-critical applications
  • Status indicator for supply voltage
  • Active or passive output
  • Plug-in screw or spring-cage connection technology (Push-in technology)
Approvals
  • cULus Listed
  • EAC Ex
  • IECEx
  • ATEX
  • DNV GL
  • UL Listed
  • cUL Listed
  • Functional Safety
