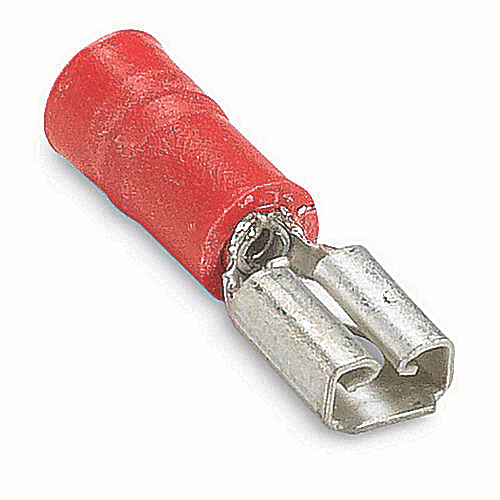

Thomas & Betts 18RAD-183 22-18 AWG Wire Range .85 Inch Length .187 Inch Tab Size Insulated Vinyl Female Disconnect

Manufacturer: Thomas & Betts Co | Catalog # 18RAD-183 | Echo Electric Part # 172898
$228.26/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet

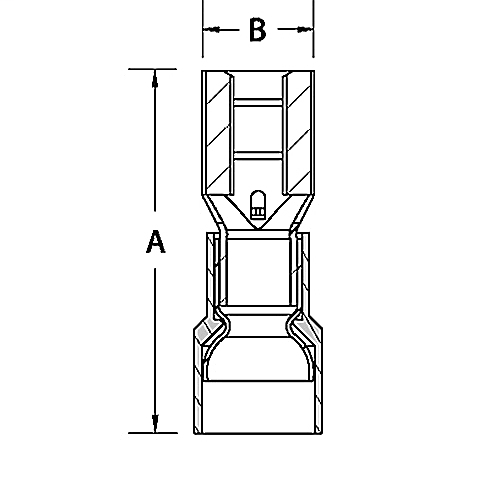

Vinyl-Insulated Female Disconnect, Length .85 Inches, Width .23 Inches, Maximum Insulation .150, Tab Size .187x.032 Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Insulation Material
PVC
Insulation Type
Vinyl
Material
Brass
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210819211
Color
Red
Finish
Electro-Tin Plated
GTiN
05414363935469
Product UPC
78621081921
Used With
Round Conductors
Certifications
  • UL
  • CSA
Features
  • Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
