Burndy KPA4C Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4" Stud, 1 Screw, Tin Plated

Manufacturer: Burndy | Catalog # KPA4C | Echo Electric Part # 172975
$5.40/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4" Stud, 1 Screw, Tin Plated

Technical Information

Applications
For Joining a Wide Range of Cable to Equipment Pads or Terminal Blocks, Light Industrial Applications
Bolt Size
5/16 in
Conductor Size
14-4 AWG
Connection Type
Pressure Bar
Direct Burial?
No
Material
Copper
Mounting Hole Size
1/4 in
Number of Holes
1 Hole
Number of Screws
1
Plated?
Yes
Plating Type
Tin
Screw Type
Slot
Standard
CSA,E2186,UL
Stud Size
1/4 in
Type
KPA, Straight

Manufacturer Information

Brand
Burndy
Sub Brand
Scrulug™

General Product Info

12-Digit UPC
781810351352
Finish
Tin Plated
GTiN
00781810351352
Product UPC
78181035135

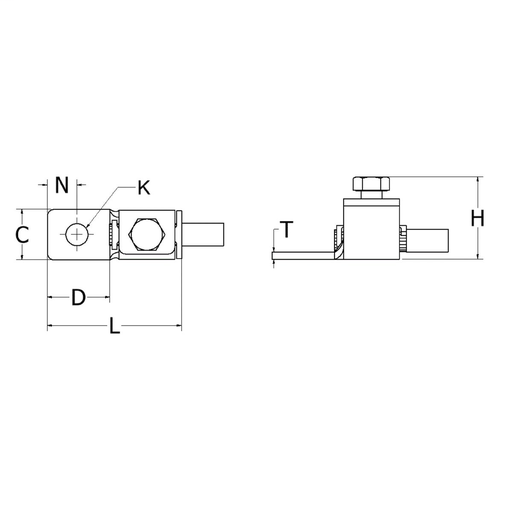

Dimensions

Height
0.94 Inch
Hole Size
0.27 in
Length
1.22 Inch
Overall Length
31 mm
Pad Width
0.50 in
Thickness
3/50 in
Width
0.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • High copper alloy terminal (tin-plated) for joining a wide range of cable to equipment pads or terminal blocks
  • Tongue and body are 1-piece design, pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable
