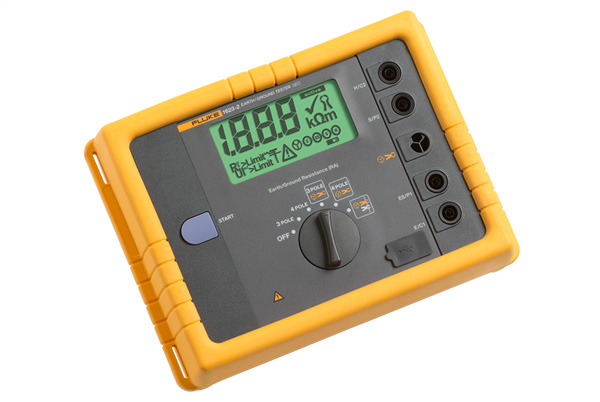

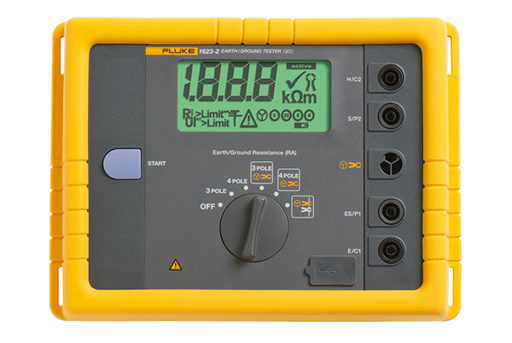

Product image for FLK FLUKE-1623-2 BASIC GEO EARTH GR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

FLK FLUKE-1623-2 BASIC GEO EARTH GR

Manufacturer: Fluke | Catalog # 1623-2 | Echo Electric Part # 173002
$2,906.99/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
GEO earth ground tester kit. Offers data storage and download capabilities via USB port. World class accessories will simplify and speed up testing time. 3 and 4-pole fall of potential, earth resistance loop testing. 4-pole soil resistivity testing. Selective earth ground rod testing using 1 clamp. Stakeless earth ground rod testing using 2 clamps. IP56 rated for outdoor use. Rugged carrying case. USB data storage and transfer. Display with special symbols, 25 mm digit height, fluorescent backlight. Internal memory storage up to 1500 records accessible via USB port. The information regarding stakeless ground loop measurements is only valid when used in conjunction with the recommended current clamps at the minimum distance specified automatic range selection. Includes: GEO earth ground tester, user's manual, batteries, quick reference guide, USB cable, (2) clamps, C1620 professional carrying case, (4) earth ground stakes, (3) cable reels.

Technical Information

Accuracy
2 %
Applications
For Measuring Earth Ground Loop Resistances
Battery Type
AA
Operating Temperature
-10 To 50 degrees C
Power Supply
Battery
Resistance
0.020 - 19.99 k? (3-Pole), 0.020 - 19.99 k? (4-Pole)
Storage Temperature
-22 To 140 degrees F
Type
Earth Ground Tester

Manufacturer Information

Brand
Fluke Corporation
Sub Brand
Fluke

General Product Info

12-Digit UPC
095969666848
Environmental Conditions
-30 to 60 C Storage
GTiN
01009596966684
Product UPC
09596966684
Weight
16.8 lb
Current Clamps
  • Fluke EI-1623
  • Fluke EI-162AC
  • Fluke EI 162BN
  • Fluke EI-162X
Other Accessories
  • Fluke GEO
Related Products
  • Fluke 1625-2 Kit
  • Fluke 1623-2 GEO Earth Ground Tester Kit
  • Fluke 1625-2 GEO Earth Ground Tester Kit
  • Fluke 1625-2
  • Fluke 1625-2 GEO Earth Ground Tester
  • Fluke 1623-2 Kit
  • Fluke 1730/Basic Three-Phase Energy Logger
Accessory Kits
  • Fluke ES 162P3-2
  • Fluke ES-162P4-2
Overview
  • 3- and 4-pole Fall-of-Potential, earth resistance loop testing
  • The Fluke 1623-2 GEO Earth Ground Tester offers data storage and download capabilities via USB port. World class accessories will simplify and speed up testing time.
  • Fluke 1623-2 GEO Earth Ground Tester summary
  • 4-pole Soil Resistivity testing
  • Selective earth ground rod testing using 1 clamp
  • Stakeless earth ground rod testing using 2 clamps
  • IP56 rated for outdoor use
  • Rugged carrying case
  • USB data storage and transfer
The Most Complete Tester
  • 3- and 4-Pole Fall-of-Potential (using stakes)
  • The Fluke 1623-2 is a unique earth ground tester that can perform all four types of earth ground measurement.
  • 4-Pole Soil Resistivity Testing (using stakes)
  • Selective Testing (using 1 clamp and stakes)
  • Stakeless Testing (using 2 clamps only)
Stakeless Testing
  • The Fluke 1623-2 earth ground tester is able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod. This test method only works if a bonded earth ground system exists for the building or structure under test, but most are. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall-of-Potential test method must be used.
  • With Stakeless testing, the earth ground rod does not need to be disconnected - leaving the bonded earth ground system intact during test. Gone are the days of spending time placing and connecting stakes for each earth ground rod on your system - a major time saver. You can also perform earth ground tests in places youve not considered before: inside buildings, power pylons, or anywhere you dont have access to soil.
Includes
  • GEO Earth Ground Tester
  • User's Manual
  • Batteries
  • Quick Reference Guide
  • 2 Test Leads
  • USB Cable
Cables & Hardware
  • Fluke Cable Reel 25M BL
  • Fluke Cable Reel 25M GR
  • Fluke Cable Reel 50M RD
