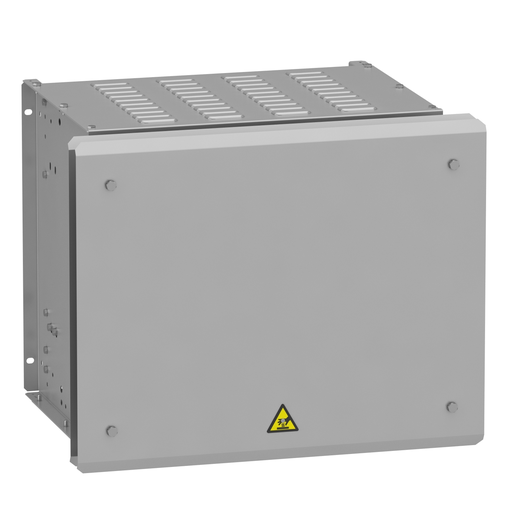

Product image for SQD VW3A7746 braking resistor, Alti
Email

SQD VW3A7746 braking resistor, Alti

Manufacturer: Square-D / Schneider | Catalog # VW3A7746 | Echo Electric Part # 173023
$1,631.31/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 5Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 27kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Technical Information

Net Weight
30.5 kg
Storage Temperature
-25-70 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
064808023937
GTiN
03606480802393
Product UPC
06480802393
Weight
30.5 kg

Dimensions

Depth
650 mm
Height
485 mm
Width
540 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Germany
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
