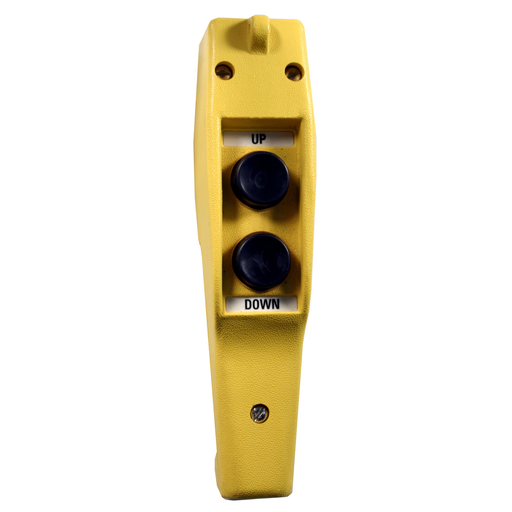

Product image for Hubbell CPB22 2-Button 2-Speed NEMA 4X Compact Pendant Push Button Station
Image thumbnail 0
Image thumbnail 1
Email

Hubbell CPB22 2-Button 2-Speed NEMA 4X Compact Pendant Push Button Station

Manufacturer: Hubbell Wiring Device | Catalog # CPB22 | Echo Electric Part # 173148
$219.65/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Switches and Lighting Controls, Industrial Grade, Pendant Controls, Two Button Compact Version, Two Speed Normally Open, Pilot Duty, 240V AC, Terminal Screws, Yellow, With

Technical Information

Actuator
Push Buttons
Amperage
1.5 Amp
Applications
Two Speed
Contact Configuration
Momentary
Contact Rating
3A at 120 VAC, 1.5 A at 240 VAC
Enclosure
Integral
Indicator
None
Material
Non-Metal
Mounting Type
Cable/Screw Terminal
Number of Phases
1 Phase
Number of Poles
4 Pole
Operating Temperature
-40 degrees C
Size
Compact
Standard
UL
Style
Two Button
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Compact, 1-Phase, 4-Pole
Voltage
250 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Magnetic Starter Controls

General Product Info

12-Digit UPC
783585106908
Color
Yellow
GTiN
00783585106908
Product Series
Compact
Product UPC
78358510690
Weight
0.75 lb

Dimensions

Height
14 Inch
Length
7.178 Inch
Width
3.4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Two-speed with mechanical interlock between pushbuttons
  • Standard Product
