Product image for Lutron MA-PRO-LA MAESTRO PRO LED DIMME
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

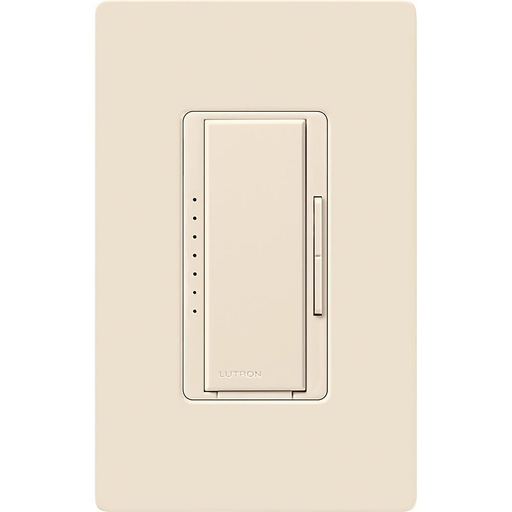

Lutron MA-PRO-LA MAESTRO PRO LED DIMME

Manufacturer: Lutron | Catalog # MA-PRO-LA | Echo Electric Part # 173285
$67.95/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Technical Information

Actuator
Tapswitch
Applications
Lighting
Connection Type
Screw Terminal,Screw-Type Terminals
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Size
75 in
TC Connection
Screw terminals
Type
Digital fade dimmer, multi-location/3-way/single-pole
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Maestro
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276261623
Color
Almond
Environmental Conditions
0 to 90 PCT
Finish
Gloss
GTiN
00784276261623
Product UPC
78427626162

Certifications and Compliance

Country of Origin
Mexico
Standards and Certifications
  • UL
  • CSA
  • NOM

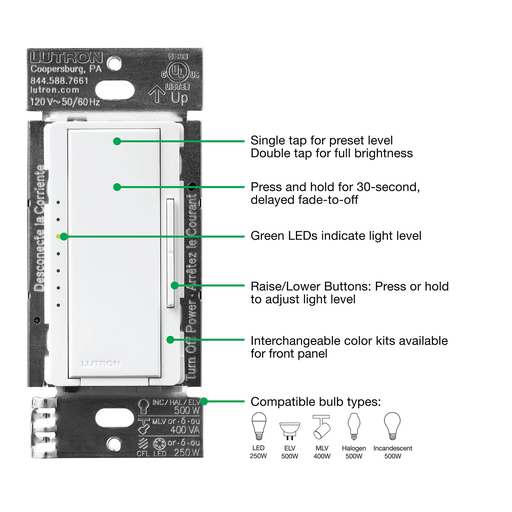

Features
  • Maximum Rating: 250W LED, 500W Incandescent / Halogen/ ELV, 400VA MLV, or 20 Hi-Lume 1% 2-Wire (LTE) LED Drivers
  • Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1% LED drivers
  • Single pole or multi-location dimming from up to 9 locations with companion dimmer (MA-R-xx sold-separately)

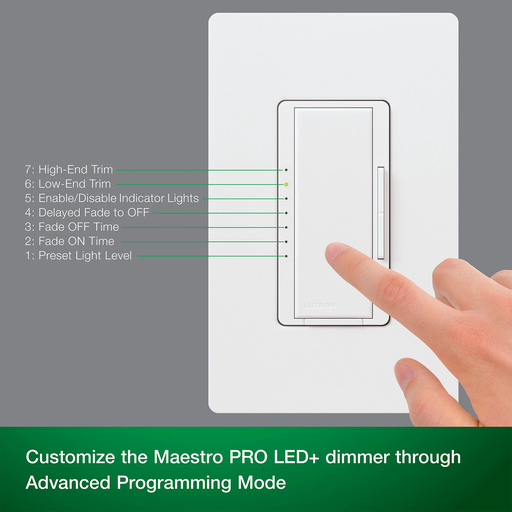

  • Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select
  • Interchangeable color kits available for front panel (color change kit MK-D sold separately)
  • Phase Auto-Select: Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase; When neutral is not connected, the automatic default is forward phase)
  • Power failure memory; Should power be interrupted, the control will return to its previous state when power is restored
  • Screw Terminals for easy install; Can be installed on either load or line side of circuit
  • While load is on: Green indicator lights brighten and reflect light level; When load is off: Indicator lights remain in a soft glow state
  • Maestro PRO LED+ dimmers and wall plates are available in 10+ colors (wall plate sold separately)
  • Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
  • Provides true dimming from each location (with companion dimmers)
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
