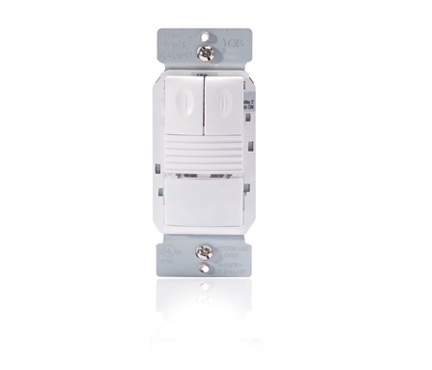

Wattstopper PW-302-W Passive Infrared Dual Relay Wall Switch Occupancy Sensor, 120/277V - White

Manufacturer: Pass & Seymour / Legrand | Catalog # PW302-W | Echo Electric Part # 173328
$171.88/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
Passive infrared wall switch occupancy sensor turns lights ON and OFF based on occupancy. It contains two relays for controlling two independent lighting loads or circuits. High sensitivity and dense coverage for exceptional performance. Two relays for control of two separate lighting loads or circuits. Defaults to manual-ON to 50% operation for maximum energy savings. It allows multi-way control from one of up to four control location.

Technical Information

Amperage
4.3 Amp
Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Enclosure
Plastic Housing
Indicator
True
Indoor Outdoor
Indoor
Material
Plastic
Mounting Type
Strap, Surface
Number of Connections
5.0
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
1050 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Temperature Rating
35 degrees C
Type
Dual Relay, Indoor, Wall Switch
Voltage
277 Volt

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935321
Color
White, Gloss
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00754182935321

Dimensions

Depth
1.81 Inch
Height
2.73 Inch
Length
2.73 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Defaults to Auto-ON to 50% operation for maximum energy savings
  • Optional neutral connection with break off tab to expose neutral terminals
  • 120/240/277 VAC and 347 VAC models
  • Allows multi-way control from one of up to four control locations
  • High sensitivity and dense coverage for exceptional performance
  • Two relays for control of two separate lighting loads or circuits
