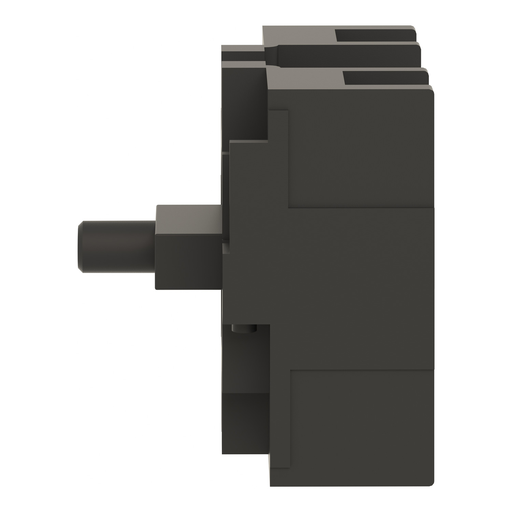

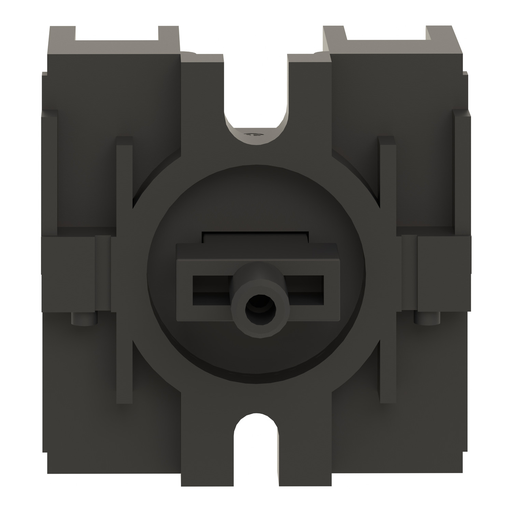

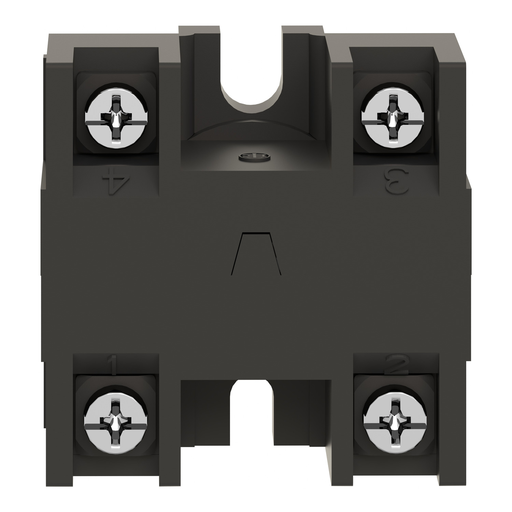

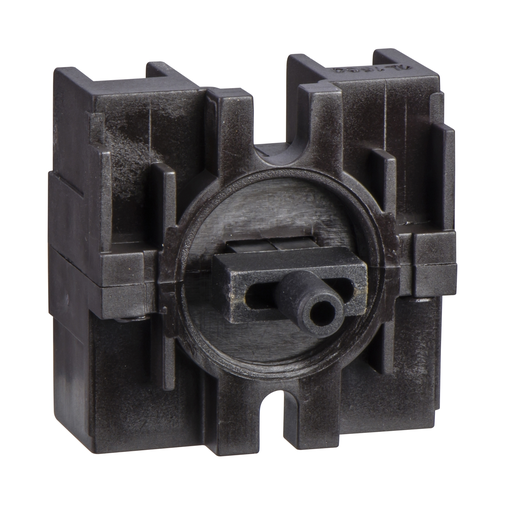

Product image for Square D XESB2011 600 VAC 10 Amp 1NO 1NC Spring Return Pendant Station Contact
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XESB2011 600 VAC 10 Amp 1NO 1NC Spring Return Pendant Station Contact

Manufacturer: Square-D / Schneider | Catalog # XESB2011 | Echo Electric Part # 173409
$52.17/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This Harmony XESB2011 is a pendant station contact 600V AC 10A. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Technical Information

Action
Snap action
Actuator
Spring return
Amperage
10 Amp
Applications
Single speed;XACM;XACB;XAB91...
Contact Configuration
1 NO + 1 NC
Operating Force
15 N
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, 1 X 2.5 MMA WITH OR WITHOUT CABLE END-SCREW CLAMP TERMINALS, 2 X 1.5 MMA WITH OR WITHOUT CABLE END
Type
Single;Contact block
Voltage
500 Volt
Wattage
140 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-140 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-95 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY XAC

General Product Info

12-Digit UPC
389110607980
GTiN
03389110607987
Product UPC
78590128941

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
