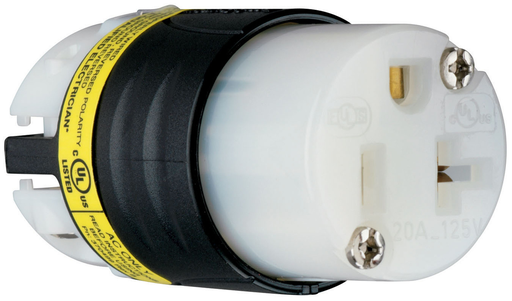

Product image for P&S PS5369XGCM STR BLD GCM CONN 3W
Email

P&S PS5369XGCM STR BLD GCM CONN 3W

Manufacturer: Pass & Seymour / Legrand | Catalog # PS5369-XGCM | Echo Electric Part # 173506
$76.85/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
Straight BladeGCM Connector 3W 20A 125A

Technical Information

Amperage
20 Amp
Applications
Commercial
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Grade
Specification
Material
Nylon
NEMA
5-20R
Number of Conductors
3
Number of Poles
2 Pole
Number of Ports
2
Number of Wires
3 Wire
Size
3"
Type
Straight Blade
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007237238
Color
Black and White
GTiN
00785007237238
Product UPC
78500723723
UNSPSC
39121402

Dimensions

Depth
2.638 Inch
Diameter
1.358 Inch
Length
3 Inch
Width
1.516 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Integral indication of ground continuity and power status. Continuous monitoring enhances personnel safety and adds convenience.
  • Dual, bright LED indicators with 360 degrees visibility. Green LEDs indicate proper ground continuity and power status. Red LEDs indicate ground continuity loss or reversed polarity. No LED indicates open hot, open neutral, or hot to ground cross.
  • For 250V configurations: Hot to ground cross will be indicated by a green and red LED.
  • Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body.
  • Exclusive two-piece cord grip accepts a wide range of cord widths. Provides more consistent pressure for superior conductor retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Recessed cord-grip screw reduces screwdriver slippage, improves safety. Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire.
  • Color-coded terminal screws are positioned on the same plane and backed-out for fast installation.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • Federal Spec Listed
  • cULus Listed
