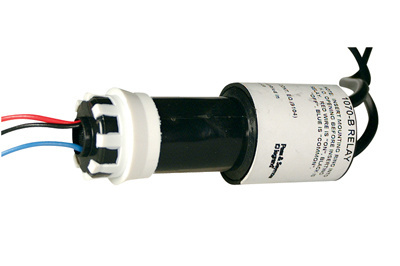

Product image for Pass & Seymour 1070-B 1.176" x 3.156" 24 VDC Low Vage Magnetic Latching Relay
Email

Pass & Seymour 1070-B 1.176" x 3.156" 24 VDC Low Vage Magnetic Latching Relay

Manufacturer: Pass & Seymour / Legrand | Catalog # 1070B | Echo Electric Part # 173970
$149.28/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
Low Voltage Component, Magnetic Latching Relay, 24VAC/24VDC Control. Reliable field-tested switching circuitry that provide central or local control of lighting loads.

Technical Information

Amperage
20 Amp
Applications
Commercial
Enclosure
Nylon
Material
Nylon
Type
Magnetic Latching Relay
Voltage
24 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007200270
Color
Black
GTiN
00785007200270
Product UPC
78500720027

Dimensions

Diameter
1.176 Inch
Height
3.156 Inch
Length
3.156 Inch
Width
1.176 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Certifications
  • UL Listed
  • CSA Listed
Features
  • Mount in standard 1/2'' KO through noise suppressing nylon ring.
  • Maximum ambient temp: 140: F (60: ).
  • Insulated flame retardant nylon shell.
  • Prestripped 5-1/2'' (140mm) #22 AWG leads for easy wiring.
  • Split coil design energizes ON coil to close line contacts, and OFF coil to open contacts.
  • Can be mounted in any position.
  • Operates on momentary impulse.
  • Draws .520 mA.
  • For covering patents, see www.legrand.us/patents.
