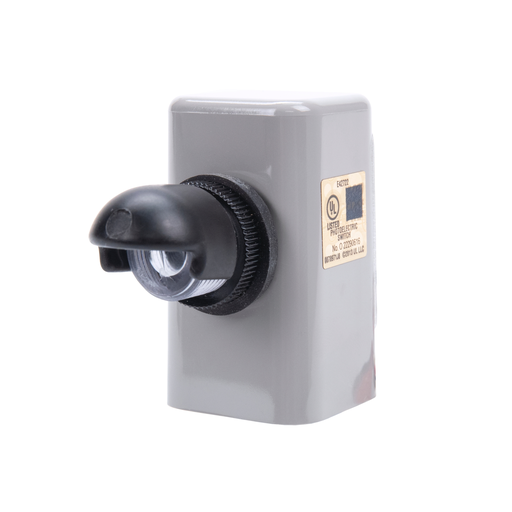

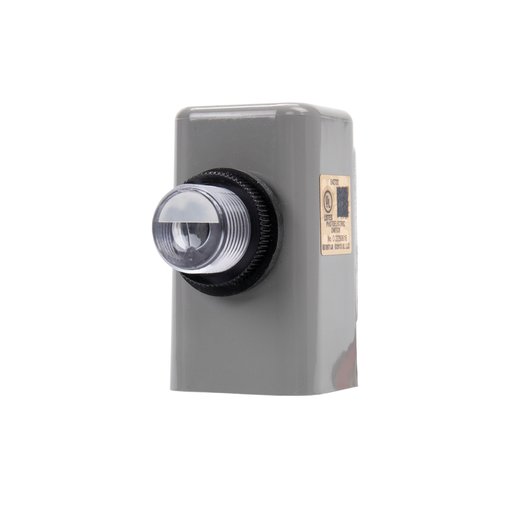

Product image for INT-MAT EK4035S NIGHTFOX Button Ele
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

INT-MAT EK4035S NIGHTFOX Button Ele

Manufacturer: Intermatic, Inc | Catalog # EK4035S | Echo Electric Part # 174045
$29.84/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. Mounts internally to an enclosure with a minimum installation hole size of 5/8” diameter. Comes with 9" wire leads.

Technical Information

Applications
Outdoor Lighting Control
Enclosure
Polycarbonate
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C
Operating Cycles
10k
Operating Temperature
-40 to +158 DEG F -40 to +70 DEG C
Power Consumption
<0.5 WTT @ 277 VAC
Size
1.31 WIDTH x 1.25 DEPTH x 2.25 HIGH IN; 3.35 WIDTH x 3.18 DEPTH x 5.72 HEIGHT CM
TC Connection
Color Coded Lead
Type
Button Style Electronic Photocell

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275152397
Color
Gray
GTiN
00078275152397
Product UPC
07827515239

Dimensions

Depth
1-1/4 Inch
Height
2-1/4 Inch
Warranty Length
8 yr
Width
1.313 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Nickel; DEHP
Country of Origin
Mexico
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations
  • 220 J MOV surge protection element
  • Mounts internally to enclosure
  • Features 3/8\" - 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter
