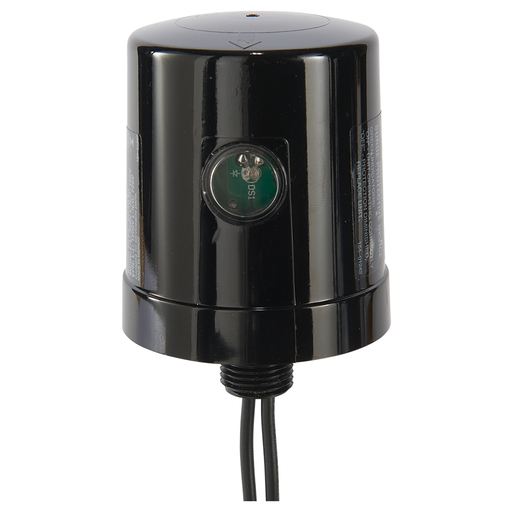

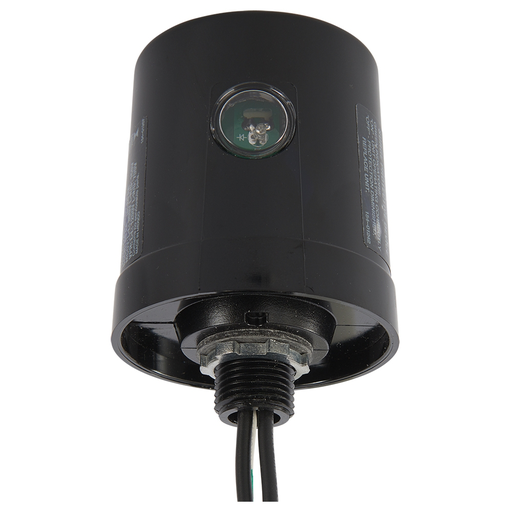

Product image for Intermatic AG6503C3 347/600 VAC 3-Pole Surge Protective Device
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Intermatic AG6503C3 347/600 VAC 3-Pole Surge Protective Device

Manufacturer: Intermatic, Inc | Catalog # AG6503C3 | Echo Electric Part # 174224
$151.31/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.

Technical Information

Applications
Outdoor - Irrigation Equipment, Farm Equipment, Pumps, Lighting Fixtures, Traffic Signaling Devices, HVACR Controls, Motors
Connection Type
18 IN Lead
Enclosure Rating
4
Enclosure Type
Type 4
Input Voltage
347/600 V
Material
PolyCarbonate
Max Operating Temperature
185 degrees F
Min Operating Temperature
-31 degrees F
Nominal Discharge Current
20 kA
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
-13 to 140 degrees F
Size
1/2 IN, 12.7 MM
Standard
CSA - UL 1449 3rd Edtion
TC Connection
18 in Lead
Type
3-Pole, 3-Phase
Voltage
347/600 Volt
Wire Length
457.2 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275124493
Color
Black
GTiN
00078275124493
Housing Material
Polycarbonate
Product Series
AG
Product UPC
07827512449

Dimensions

Height
4.188 Inch
Warranty Length
1 yr

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Six modes of protection
  • TPMOV® surge protection technology
  • Green LED protection indicator
  • Type 4X watertight, plastic enclosure for outdoor installations
  • UV-resistant polycarbonate housing
  • 1?2\" threaded nipple for 7?8\" nominal conduit knockout
  • 1-year product warranty
  • UL Listed to ANSI/UL 1449 5th edition
  • NA
