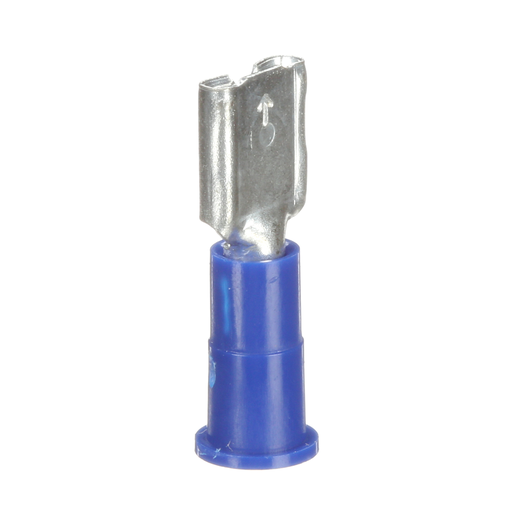

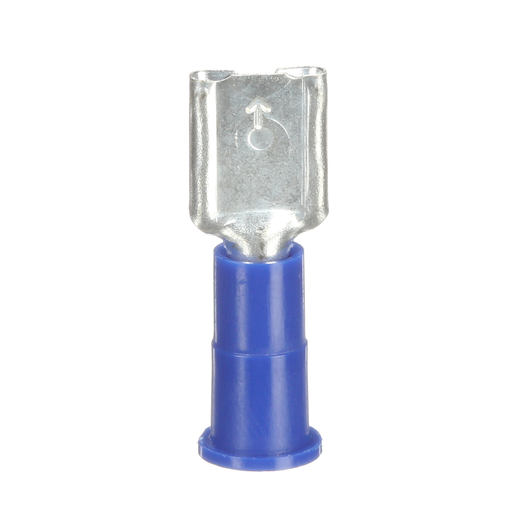

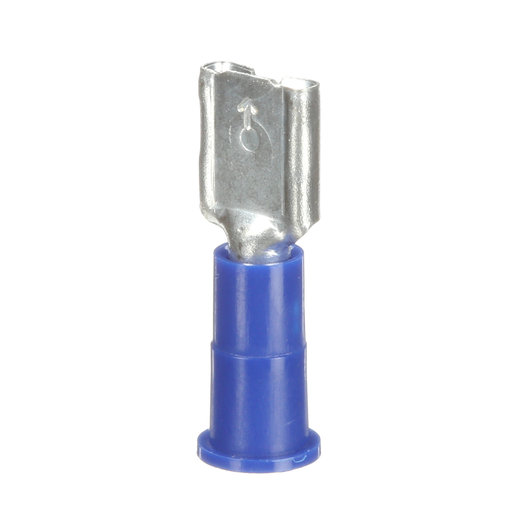

3M MVU14-250DFX 100/Bottle Vinyl Insulated Female Disconnect

Manufacturer: 3M | Catalog # 7000133285 | Echo Electric Part # 174340
$115.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Female Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the female part over male. It has good corrosion resistance, improved mechanical performance, and is both versatile and easy to use. It has dents and rolled edges to offer good holding force, while allowing for a quick disconnect. The terminal has a vinyl-insulated, butted-seam barrel, and withstands a maximum temperature of 221 degrees Fahrenheit (105 degrees Celsius). Its durable brass construction offers good conductivity and its tin-plated finish resists corrosion. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified.

Technical Information

Applications
For Quick and Easy Disconnect of Wires, Wireless Network, Infrastructure Accessories
Barrel Type
Butted Seam
Conductor Size
16-14 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Tab Size
1/4 in W x 0.032 in T
Temperature Rating
105 degrees C
Terminal Size
16 - 14 AWG
Type
E1 Plus Solid State Relay
Voltage
600 Volt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128586716
Color
Blue
Finish
Tin Plated
GTiN
00051128586716
Product UPC
05112858671

Dimensions

Diameter
0.23 Inch
Length
0.87 Inch
Overall Length
0.87 in
Width
0.37 in

Certifications and Compliance

Country of Origin
USA
Features
  • CERTIFIED: UL Listed and CSA Certified for use on stranded copper (AWG) wire only
  • STEEL OR BRASS: Used for factory installations on steel or brass tabs

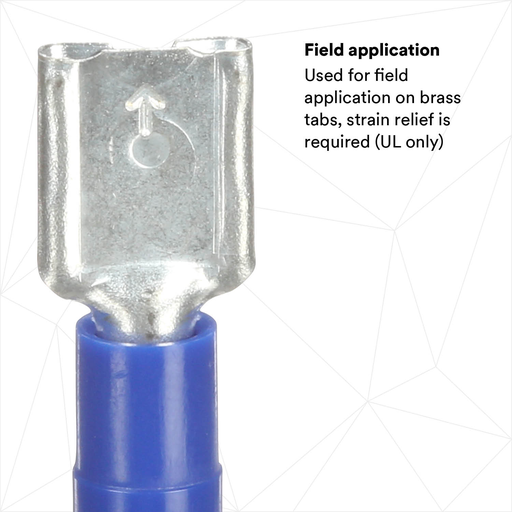

  • FIELD APPLICATION: Used for field application on brass tabs, strain relief is required (UL only)

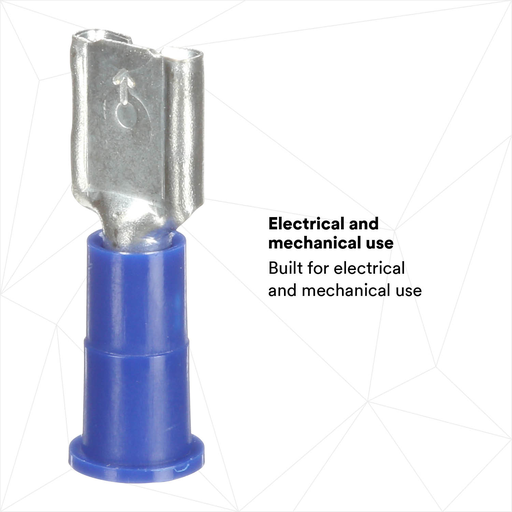

  • ELECTRICAL AND MECHANICAL USE: Built for electrical and mechanical use
  • RELIABLE CONNECTION: Connects permanently to a pre-stripped end of stranded copper wire
  • COMPATIBLE: Used for field or factory wiring, with a UL recognized strain relief required
