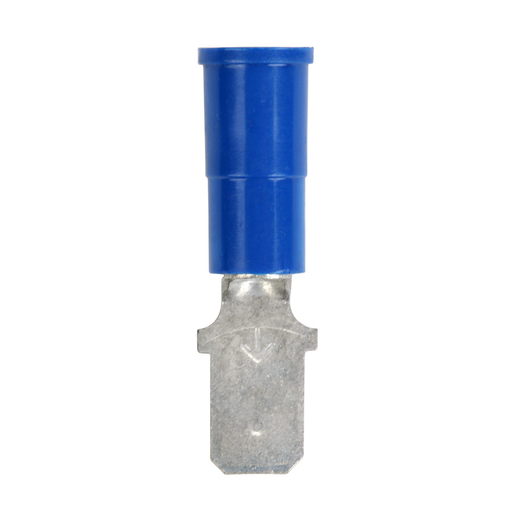

Product image for 3M MVU14-250DMX 100/Bottle Vinyl Insulated Male Disconnect
Image thumbnail 0
Image thumbnail 1
Email

3M MVU14-250DMX 100/Bottle Vinyl Insulated Male Disconnect

Manufacturer: 3M | Catalog # 7000133289 | Echo Electric Part # 174345
$115.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Male Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the male part over the female tab. This disconnect offers superior holding force while allowing for quick and easy disconnect. Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). 3M™ Scotchlok™ Male Disconnects are UL Recognized and CSA certified.

Technical Information

Applications
For Quick and Easy Disconnect of Wires
Barrel Type
Butted Seam
Conductor Size
16-14 AWG
Insulation Material
Vinyl
Material
Plastic
Max Operating Temperature
105.0 degrees C
Tab Size
1/4 in W x 0.032 in T
Temperature Rating
105 degrees C
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Disconnect
Type
Disconnect
Voltage
600 Volt

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
051128586761
Color
Blue
Finish
Tin Plated
GTiN
00051128586761
Product UPC
05112858676

Dimensions

Diameter
0.39 Inch
Length
0.93 Inch
Overall Length
0.93 in
Thickness
0.032 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
