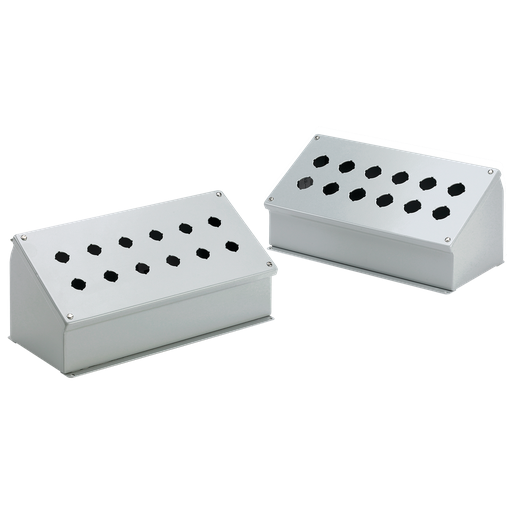

Product image for Hoffman E12PBA Sloped-Front Pushbutton Enclosures, Type 12, 12PB x 30.5mm, Gray, Steel
Email

Hoffman E12PBA Sloped-Front Pushbutton Enclosures, Type 12, 12PB x 30.5mm, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # E12PBA | Echo Electric Part # 174505
$444.04/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
These Sloped Front Pushbutton Enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches where slanted control surfaces are desired.

Technical Information

Applications
For Push Buttons and Switches
Color Coding
ANSI 61
Material
Steel
Number of Holes
12 Hole
Size
12PB x 30.5mm
Standard
CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
12-Hole, Sloped-Front

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510586003
Color
Gray
Finish
Powder Coated
GTiN
00783510586003
Product UPC
78351058600
Used With
30.5 mm Push Button
Weight
10.7 lb

Dimensions

Depth
6.7 Inch
Height
7-1/4 Inch
Hole Size
30.5 mm
Length
15.8 Inch
Thickness
1.9 mm
Width
15.25 in
Features
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Grounding stud on body
  • Bonding provision on cover
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes
