KLEIN 69149P Electrical Test Kit

Manufacturer: Klein Tool | Catalog # 69149P | Echo Electric Part # 174671
$44.98/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 13 to 21 days
Product Spec Sheet Safety Data Sheet

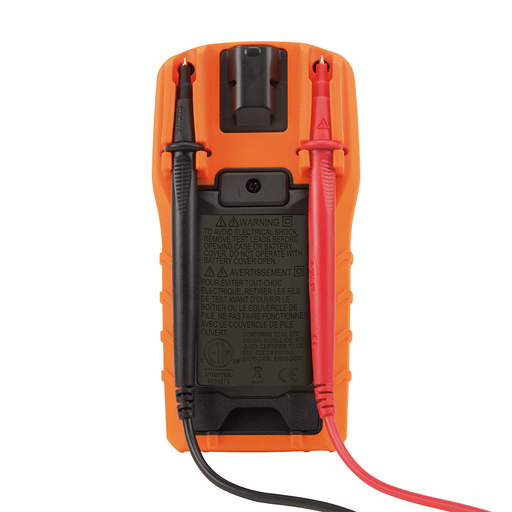

Klein Tools Multimeter Test Kit contains Cat. No. MM300 (Manual-Ranging Digital Multimeter), Cat. No. NCVT1P (Non-Contact Voltage Tester) and Cat. No. RT105 (Receptacle Tester). The MM300 measures DC current, AC/DC voltage and resistance. The NCVT1P automatically detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires. The RT105 detects the most common wiring problems in standard receptacles.

Technical Information

Applications
For Testing and Measuring Voltage
Battery Type
(2) AAA
Material
Polymer

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644693724
GTiN
00092644693724
Product UPC
09264469372
Weight
0.944 lb

Dimensions

Depth
3-1/2 Inch
Height
1.78 Inch
Overall Length
6 in
Width
3.16 in

Certifications and Compliance

Country of Origin
China
Warnings
  • Do not attempt to measure resistance or continuity on live circuits.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use equipment during electrical storms or in wet weather, and do not use if equipment appears to be damaged.
Features
  • The MM300 multimeter measures AC/DC voltage, DC current and resistance and has a safety rating of CAT III 600V, Class 2, Double insulation
  • Non-Contact Voltage Tester Cat. No. NCVT1P has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected
  • NCVT1P has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000 VAC power operating range

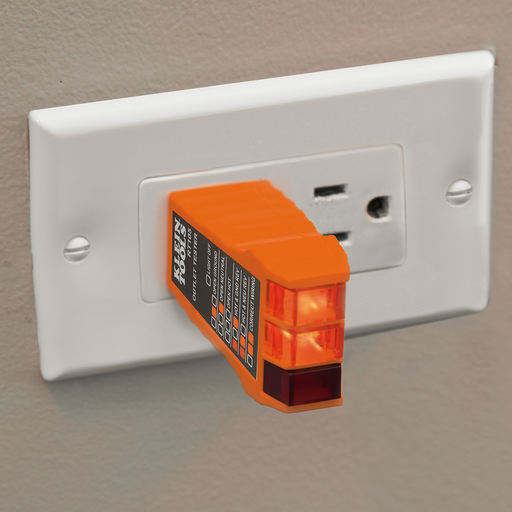

  • Receptacle tester detects wiring configurations and indicates correct wiring, and identifies common wiring faults
  • Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects
  • MM300 multimeter tests continuity with visual and audible continuity indicators
  • Test leads included for Cat. No. MM300; batteries included for Cat. Nos. NCVT1P and MM300
  • MM300: Low Battery Indicator; NCVT-1P: Pocket Clip
  • Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance
  • Receptacle tester Cat. No. RT105 detects wiring configurations and indicates correct wiring, and identifies common wiring faults
