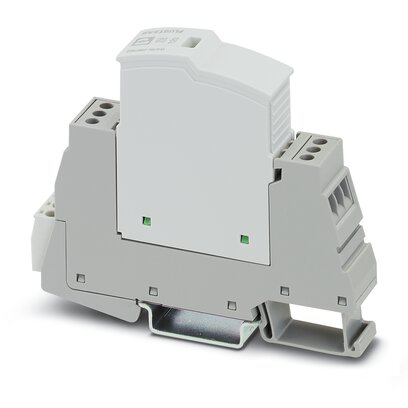

Product image for PHNX 2907918 PLT-SEC-T3-120-FM-UT 120 V AC SURGE SUPPRESSION PLUG AND BASE
Image thumbnail 0
Image thumbnail 1
Email

PHNX 2907918 PLT-SEC-T3-120-FM-UT 120 V AC SURGE SUPPRESSION PLUG AND BASE

Manufacturer: Phoenix Blocks | Catalog # 2907918 | Echo Electric Part # 174758
$277.24/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
18 available

For Delivery

Not in local stock *
Check another branch
Type 2/3 surge protection, consisting of protective plug and base element, with integrated status indicator and remote signaling for single-phase power supply networks. Nominal voltage: 120 V AC/DC

Technical Information

Amperage
20 Amp
Enclosure Type
IP20
Material
Polyamide
Mounting Type
35 mm DIN Rail
Nominal Discharge Current
5 kA
Power Rating
<=13.5 mVA
Strip Length
10 mm
Temperature Rating
-40 to 80 degrees C
Terminal Type
M3 Screw
Type
Type 3
Voltage
120 VAC

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
055626257446
Environmental Conditions
5 - 95% Humidity

Dimensions

Depth
7.5 mm
Height
93.4 mm
Width
17.7 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Increased service life and availability of the system, thanks to optimal protection of your industrial power supply
  • 5-year warranty on your QUINT 4 power supply when installed together with PLT-SEC, see document in the download area
  • Easy maintenance and testing of protective devices, thanks to pluggable connections
Approvals
  • cULus Recognized
  • cULus Listed
  • CCA
  • EAC
  • IECEE CB Scheme
  • DNV GL
  • KEMA-KEUR
  • CSA
  • UL Recognized
  • UL Listed
  • cUL Recognized
  • cUL Listed
