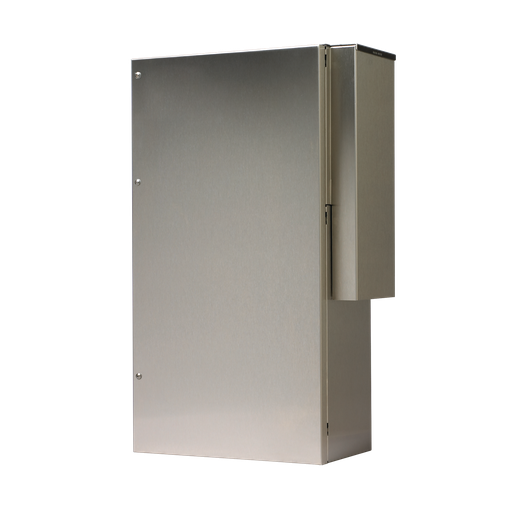

Product image for Hoffman CR290426G061 PROAIR Harsh Environment Indoor/Oudoor Stainless Steel with Corrosion Type 4X, CR29, 14" x 21" x 32.75", SS Type 304
Email

Hoffman CR290426G061 PROAIR Harsh Environment Indoor/Oudoor Stainless Steel with Corrosion Type 4X, CR29, 14" x 21" x 32.75", SS Type 304

Manufacturer: nVent Hoffman | Catalog # CR290426G061 | Echo Electric Part # 174828
$8,571.96/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
The ProAir Harsh Environment Air Conditioner protects components exposed in corrosive environments on the ambient side of the air conditioner. The unit has few fasteners and a hinged door for quick service and maintenance access. The smooth surface and optional hood provides protection from splashed water.

Technical Information

Applications
Controls and Drives; Corrosive Environments; Hygienic Environments; Power Distribution
BTU Hour
4000 BTU
Material
Stainless Steel
Max Current
2.5 A
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Type
Air Conditioners
Voltage
460
Wattage
1172 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProAir

General Product Info

12-Digit UPC
783510223441
Color
Gray
Finish
Brushed
GTiN
00783510223441
Product UPC
78351022344
Weight
123 lb

Dimensions

Depth
8.63 Inch
Height
29-1/2 Inch
Length
14 Inch
Thickness
1.21 mm
Width
15.75 in
Features
  • Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
  • Smooth surface with minimal use of visible fasteners
  • Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
  • R134a, R513A or R407C Refrigerant
  • Models for 115, 230 and 460 single phase VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
  • Reliable mechanical thermostat located behind the filter of the unit
  • Robust reciprocating compressor
  • Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
  • High-performance fans and blowers designed for densely packed enclosures
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
  • Mounting hardware, gaskets and user manual furnished with the unit
