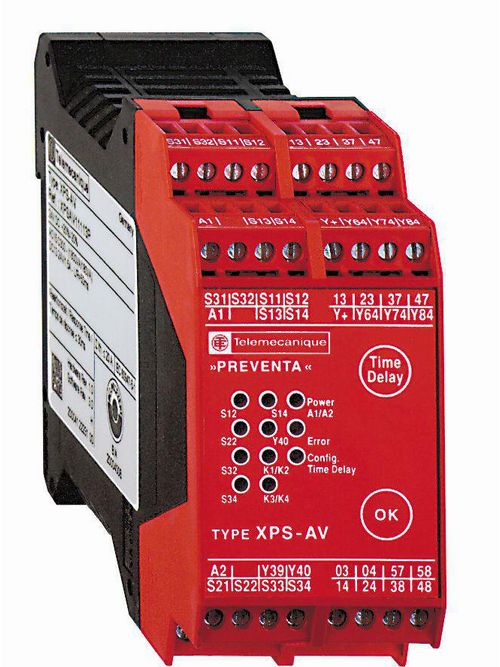

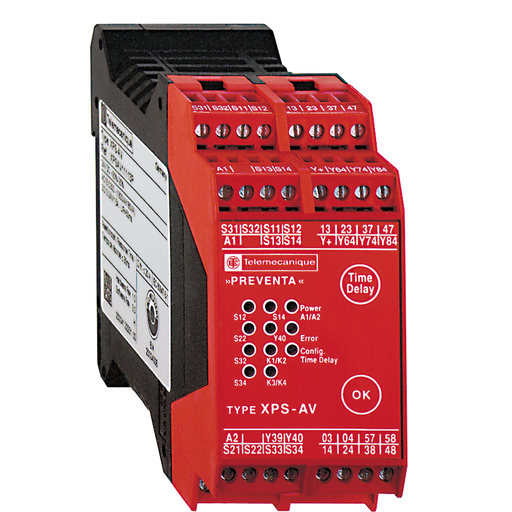

Square D XPSAV11113P 24 VDC 3NO 11-LED Display Safety Relay Module

FOR EMERGENCY STOP AND SWITCH MONITORING,MONITORING OF A MOVABLE GUARD ASSOCIATED WITH 2 SWITCHES AUTOMATIC START-EMERGENCY STOP MONITORING 1-CHANNEL WIRING-EMERGENCY STOP BUTTON WITH 1 NC CONTACT, AUTOMATIC START OR UNMONITORED START-EMERGENCY STOP MONITORING 2-CHANNEL WIRING-EMERGENCY STOP BUTTON WITH 2 NC CONTACTS, MONITORED START

RELAY INSTANTANEOUS OPENING 3 NO, RELAY TIME DELAY OPENING 3 NO

180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT,20 MA 24 V-1.25 A 24 V DC-13)50 MS RELAY OUTPUT

IP20 CONFORMING TO EN/IEC 60529(TERMINALS), IP40 CONFORMING TO EN/IEC 60529(ENCLOSURE)

RELAY INSTANTANEOUS OPENING, 3 NO, VOLT-FREE-RELAY TIME DELAY OPENING, 3 NO, VOLT-FREE

24 V DC - 20...20

-13degrees To 185 degrees F (-25degrees To 85 degrees C)

CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL

PREVENTA SAFETY MODULE

Preventa

PREVENTA

785901343240

03389110861495

78590134324

18 mth

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Indonesia
