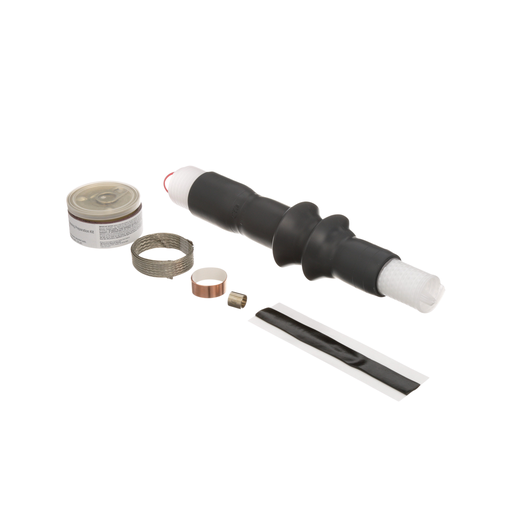

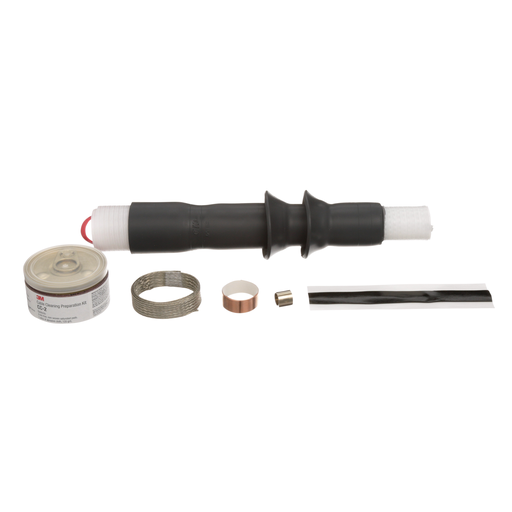

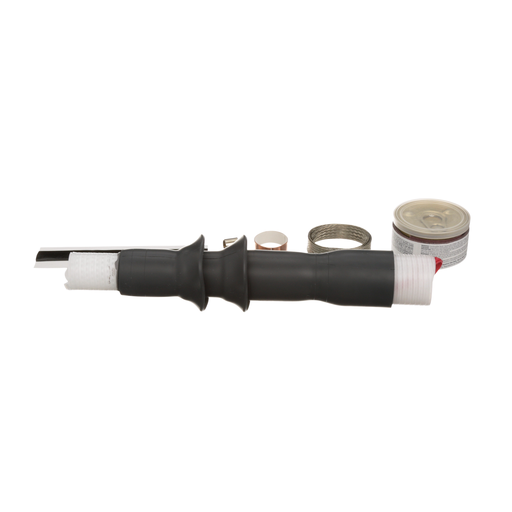

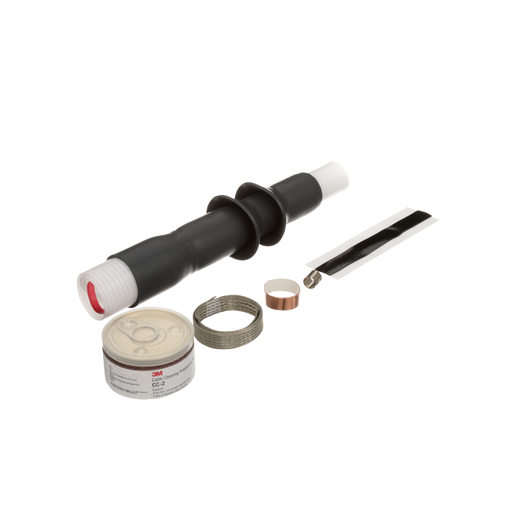

Product image for 3M 7621-S-2 Cold Shrink 3 Terms/Kit 2 Skirt Termination Kit
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M 7621-S-2 Cold Shrink 3 Terms/Kit 2 Skirt Termination Kit

Manufacturer: 3M | Catalog # 7000133210 | Echo Electric Part # 174937
$80,811.44/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 2 Skirt Termination 7621-S-2 has a conductor size range for 5 kV: 2-3/0 AWG and 8 kV: 4-2/0 AWG.

Technical Information

Applications
For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Outdoor Use
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
4-3/0 AWG
Indoor Outdoor
Outdoor Skirted
Insulation Diameter Range
11.176 mm
Material
Rubber
Number of Conductors
1
Shielding Type
Tape Shield,UniShield®,Wire Shield
Type
QT-III
Voltage
5 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007421696
GTiN
00054007421696
Product Series
7620-S
Product UPC
05400742169
Used With
0.44 - 0.89 in Cable

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
