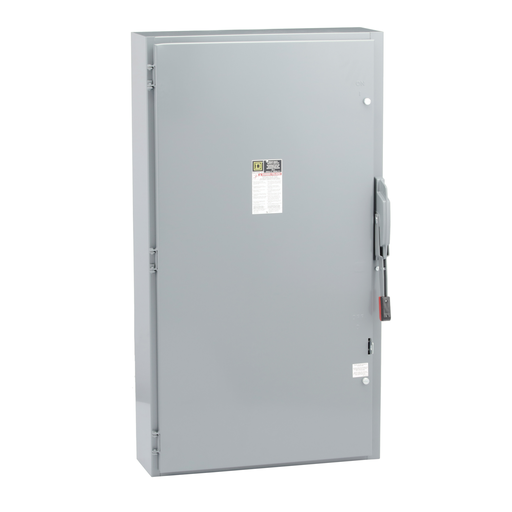

Product image for Square D H265 600 VAC 400 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D H265 600 VAC 400 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H265 | Echo Electric Part # 175174
$2,520.33/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Safety switch, heavy duty, fusible, 400A, 2 poles, 250 hp, 600 VAC/DC, NEMA 1

Technical Information

Amperage
400 Amp
Applications
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Conductor Size
1/0 AWG-750 kcmil
Contact Configuration
2
Contact Rating
Y
Current
400 Amp
Disconnect Type
Fusible disconnect NULL
Duty Rating
Heavy duty NULL
Enclosure
1
Enclosure Material
Stainless Steel
Fuse Type
H Or K,R Or J
Line Rated Current
400 A
Mounting Type
Surface
NEMA Size
1
Net Weight
77.1 kg
Number of Phases
3 Phase
Number of Poles
2 Pole
Short Circuit Current
10 kA
Size
10.13 IN,27.63 IN,50.25 IN
TC Connection
AWG 1/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type
SAFETY SWITCH
Voltage
600 Volt
Wattage
1 Watt

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901450719
Environmental Conditions
GENERAL PURPOSE (INDOOR)
GTiN
00785901450719
Product UPC
78590145071
Weight
169.98 lb

Dimensions

Depth
10.13 Inch
Height
50-1/4 Inch
Warranty Length
18 mth
Width
27.63 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
Mexico
