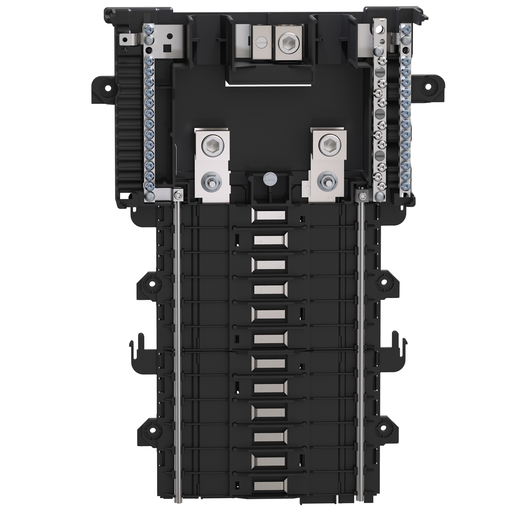

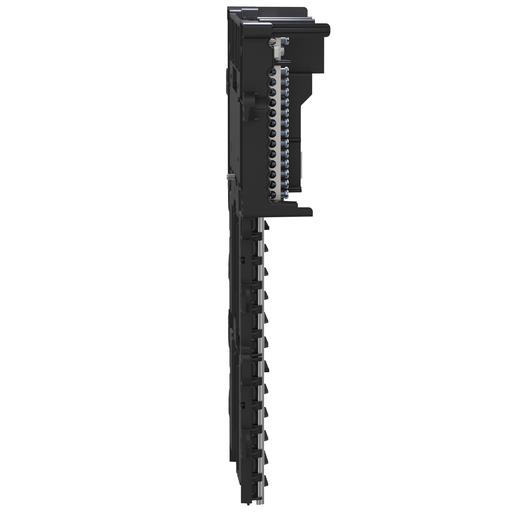

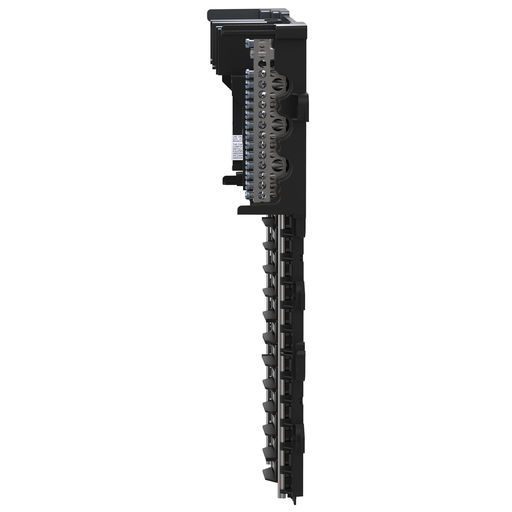

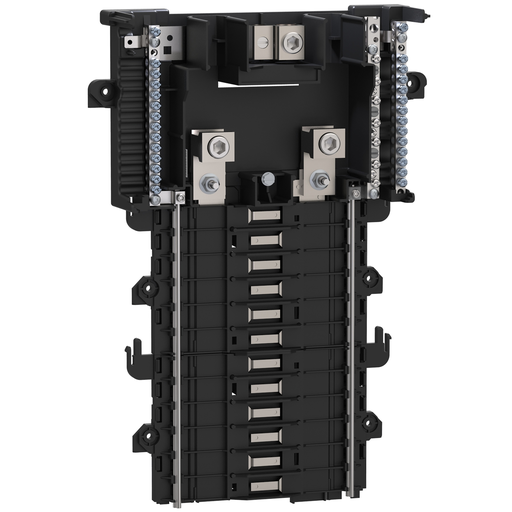

Product image for SQD QON124L200PI Load center interi
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

SQD QON124L200PI Load center interi

Manufacturer: Square-D / Schneider | Catalog # QON124L200PI | Echo Electric Part # 175647
$450.99/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 24 spaces. This mounting base will accept only QO plug on circuit breakers. This system is plug on neutral and has a neutral bus bar. The QON mounting base is UL component recognized.

Technical Information

Amperage
200 Amp
Current
200 Amp
Interrupt Rating
10 kAIC
Line Rated Current
200 A
Net Weight
1.361 kg
Number of Phases
1,3 Phase
Number of Spaces
24
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Type
Mounting base
Voltage
120/240 Volt
Wire Size
AWG 4...250 kcmil aluminium/copper

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901452454
GTiN
00785901452454
Product UPC
78590145245
Weight
1.361 kg

Dimensions

Depth
66 mm
Height
384 mm
Length
2.68 Inch
Width
270 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • QO120PDFC
  • QO120CAFI
  • QO120DF
  • QO130GFI
  • QO115VH
